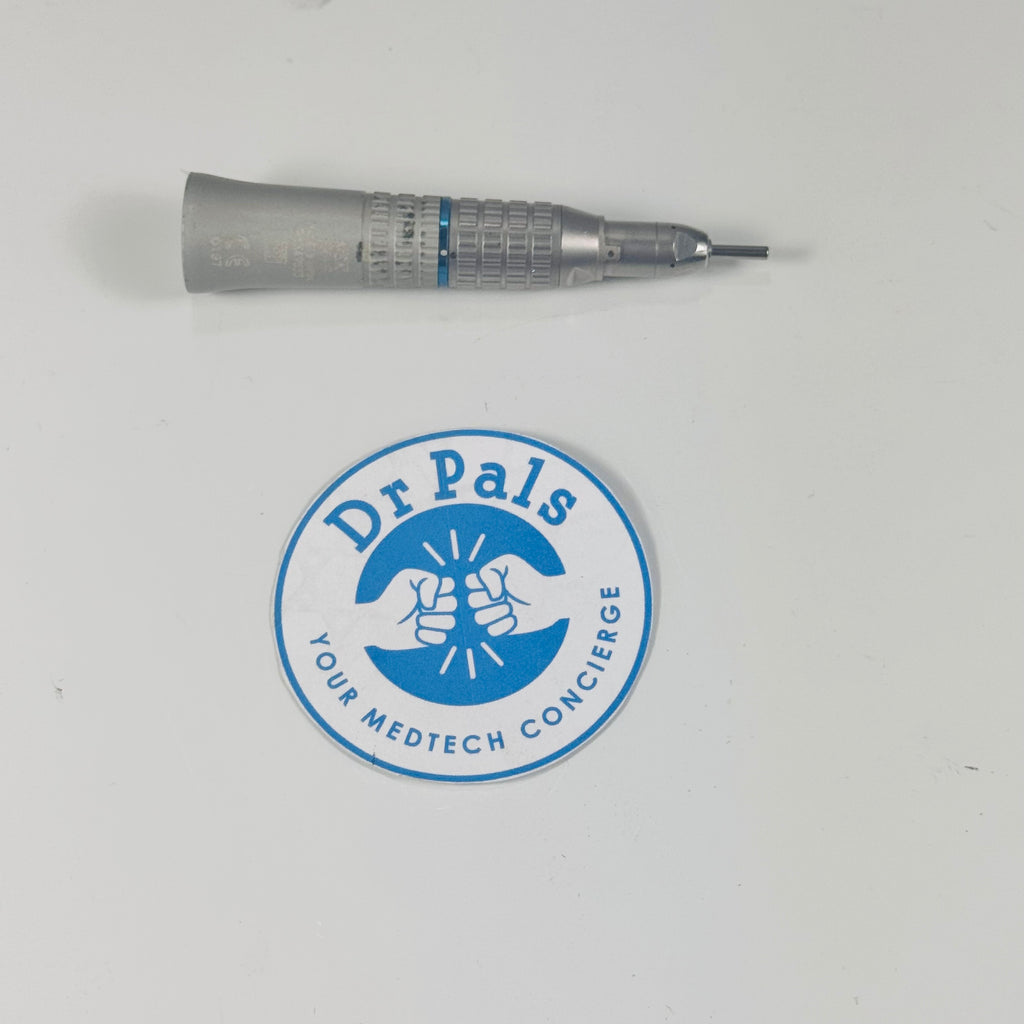

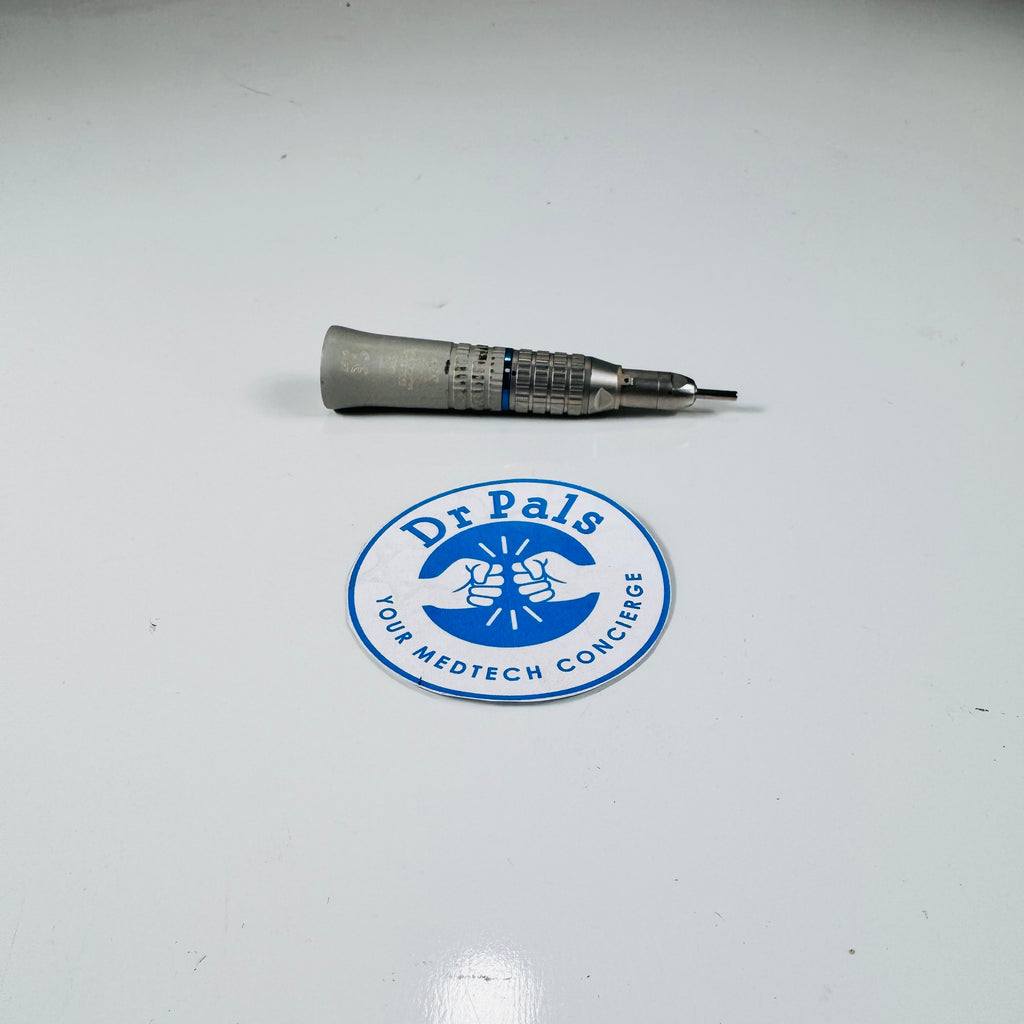

This E-type attachment accepts ISO 1797-1 Type 2 HP burs (ø2.35 mm shank, up to 44.5 mm length) with a 30 mm chucking length and ø4 mm max working diameter. It supports a maximum speed of 40,000 min⁻¹ (rpm) and weighs 99.5 g with dimensions of ø19.6 mm x 85.1 mm length.
Key Features
- Gear Ratio: 1:1 direct transmission for precise control in endodontics, surgery, and prophylaxis with compatible prophy angles per ISO 14457.
- Care Instructions: Lubricate with PANA SPRAY after each use; autoclavable to 135°C; clean sheath with alcohol, avoiding acid solutions or boiling.
- Compatibility: Connects to E-type air motors; test for vibration/noise before use; bur must be fully inserted and locked to prevent ejection.
