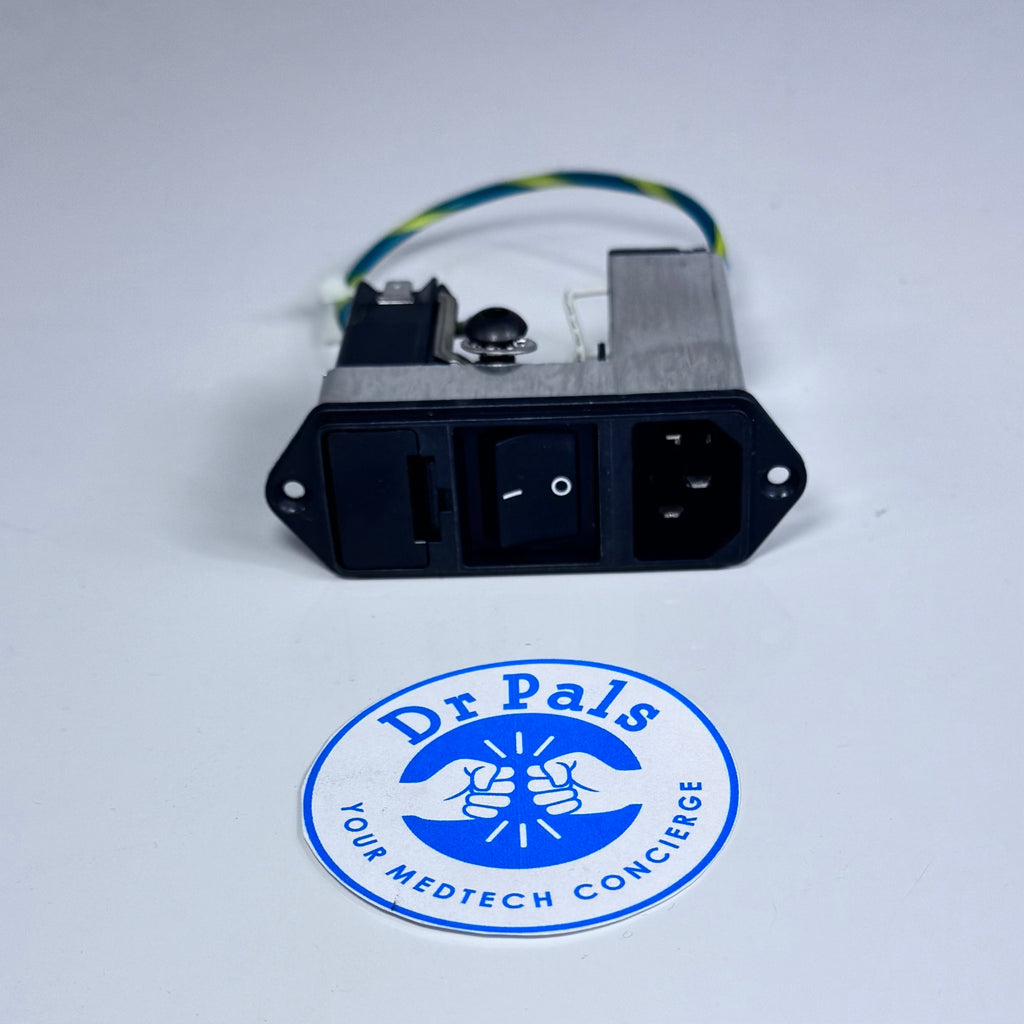

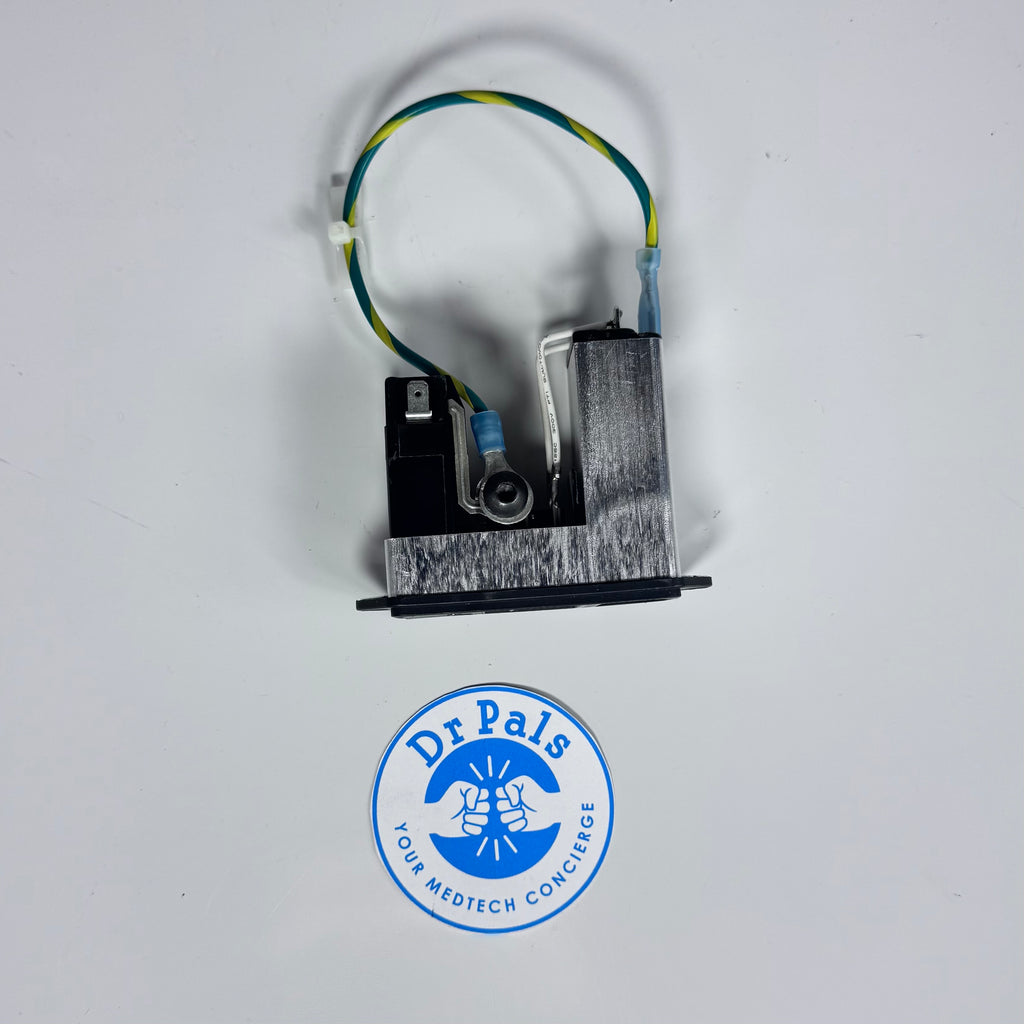

This component features a 2-pole IEC C14 appliance inlet, line switch, and fuseholder all in one compact unit. It includes a medical-grade line filter, making it suitable for compliance with IEC/UL 60601-1 standards for medical electrical equipment. The unit helps protect sensitive electronics by filtering EMI/RFI interference at the point of power entry.
Key Features
- 2-pole, non-illuminated line switch
- IEC 60320 C14 panel-mount appliance inlet
- Integrated fuse holder for 5x20mm or 6.3x32mm fuses
- Medical version filter (ultra-low leakage, <5µA) for IEC/UL 60601-1 compliance
- Quick connect terminals, solid metal flange, and V-Lock notch for secure cable retention
- Slim, compact design for constrained spaces
- Rated for up to 2A at 250V AC (medical filter M80)
- Fingergrip fuse drawer; supports fast, tool-free fuse replacement
- Suitable for devices requiring high safety and low interference in clinical environment
