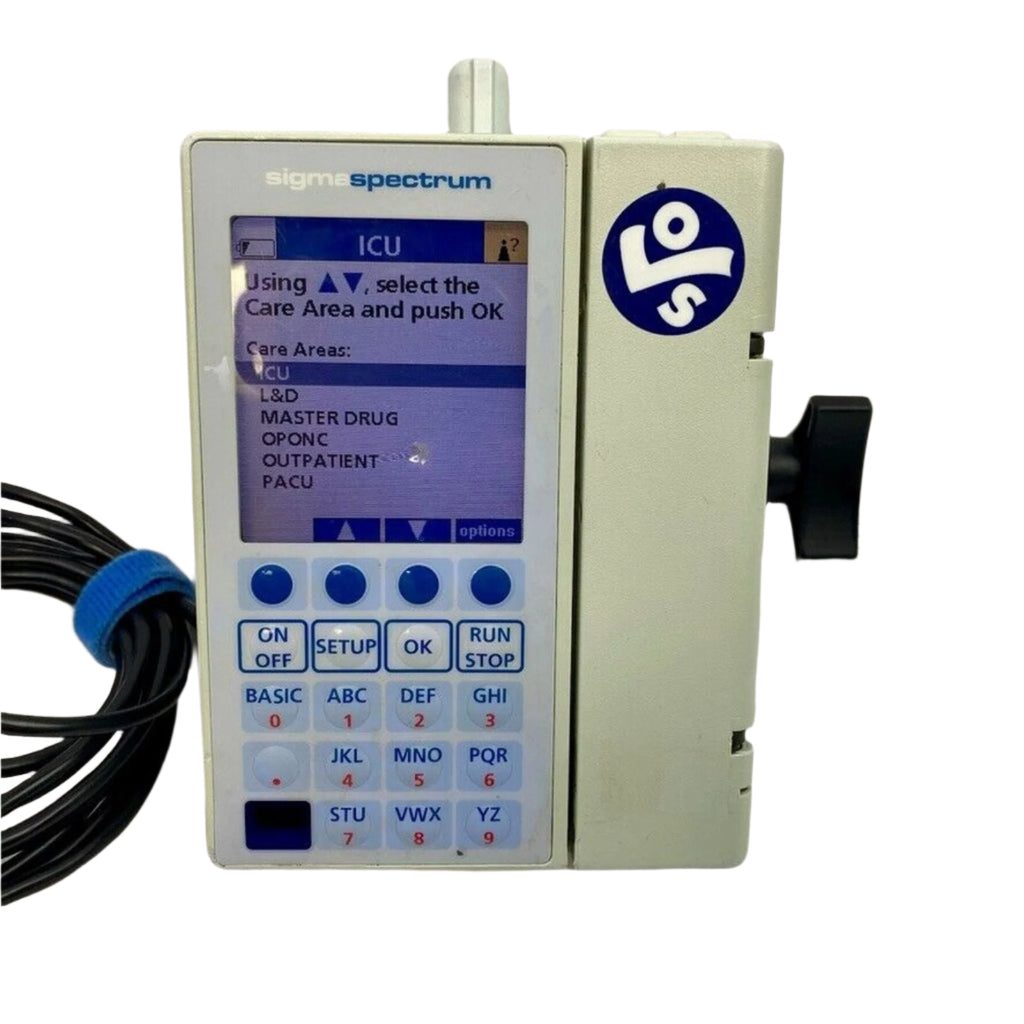

The Sigma Spectrum is a volumetric infusion pump designed for precise and controlled administration of intravenous fluids, medications, blood products, and nutritional therapies. It utilizes a linear peristaltic pumping mechanism to deliver fluids safely through various clinically accepted routes such as intravenous, subcutaneous, intrathecal, and epidural. The pump is equipped with an integrated drug library, advanced safety alarms, and supports multiple therapy modes including primary, secondary, multi-step, and cyclic TPN infusions. Its compact, lightweight design with a bright color display and easy programming interface makes it suitable for busy clinical environments requiring reliable infusion control.
Key Features:
- Pumping Mechanism: Linear peristaltic
- Flow Rate Range: 0.5 to 999 mL/hr (increments of 0.1 mL/hr up to 99.9 mL/hr, then 1 mL/hr increments)
- Total Volume Range: 0.1 to 999 mL with precise increments
- Occlusion Pressure Settings: Adjustable High (approx. 19 PSI), Medium (13 PSI), and Low (6 PSI)
- Maximum Pump Pressure: 28 PSI
- Therapy Modes: Primary, Secondary, Multi-Step, Cyclic TPN
- Alarms: Air-in-line, downstream and upstream occlusion, low battery, door open, infusion complete, and system errors
- Battery: Rechargeable lithium-ion battery with at least 4-8 hours operating time depending on use and backlight setting
- Dimensions: Approximately 6.3" L x 4.2" W x 2.5" D (16 cm x 10.67 cm x 6.35 cm)
- Weight: About 2.2 lbs (1.0 kg)
- Display: Bright color LED screen with easy-to-read fonts and on-screen help menus
- Compatibility: Works with all standard Baxter IV administration sets
- Connectivity: RS232 and infrared data interface options for integration and data logging
- Safety Features: Anti-free-flow system using IV set clamp, multiple alarm volume levels

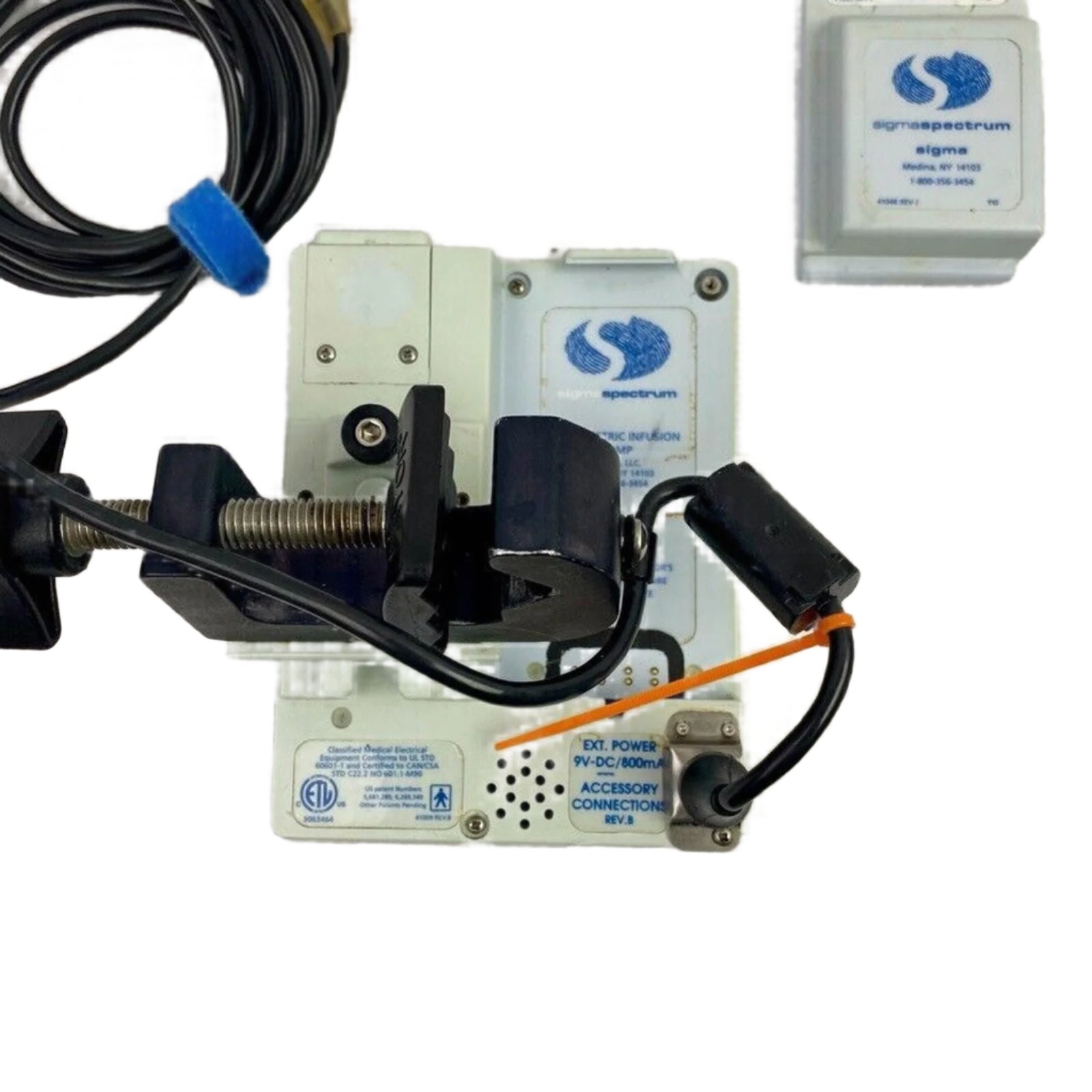

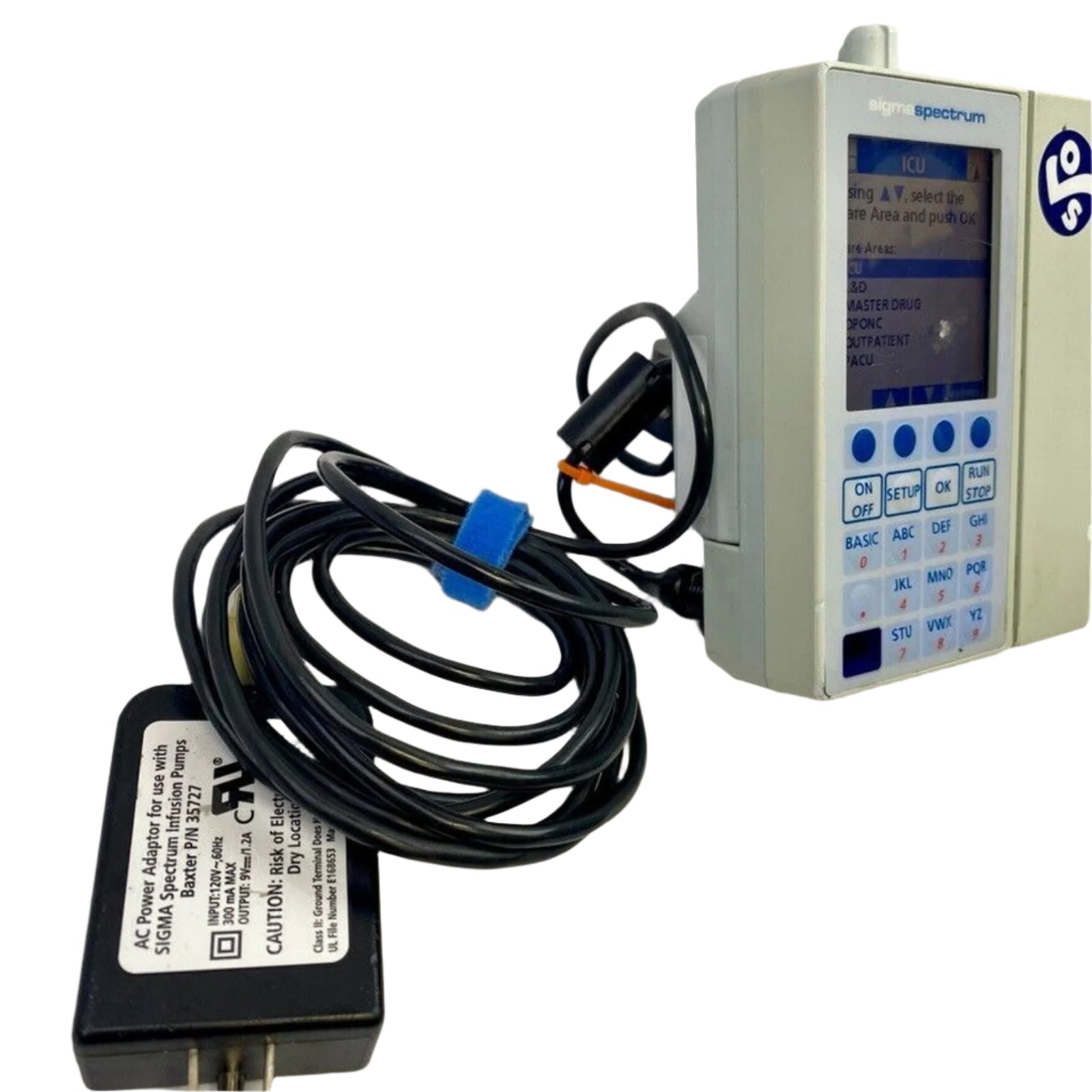

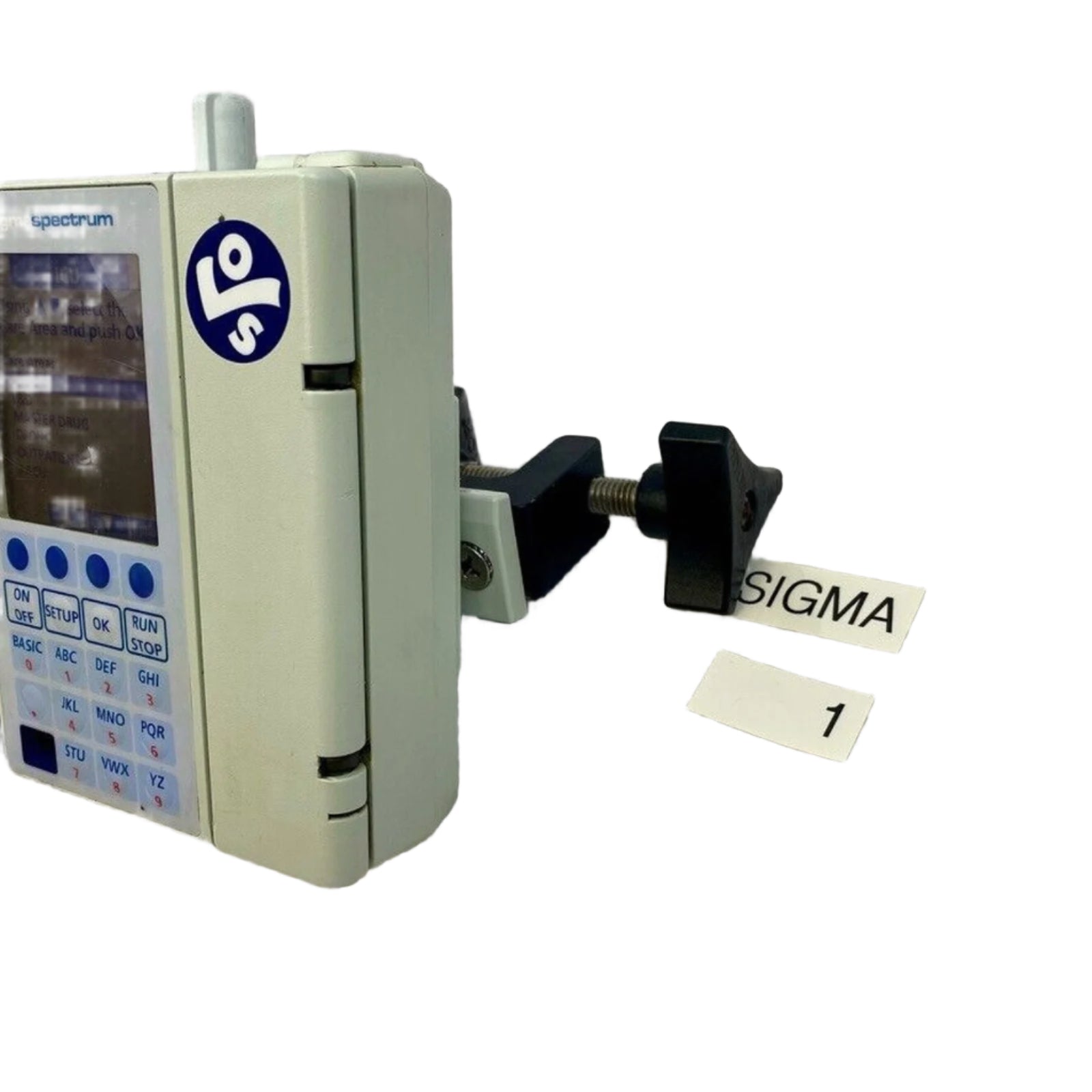

- Includes: AC adapter, battery, pole clamp for mounting on IV poles
