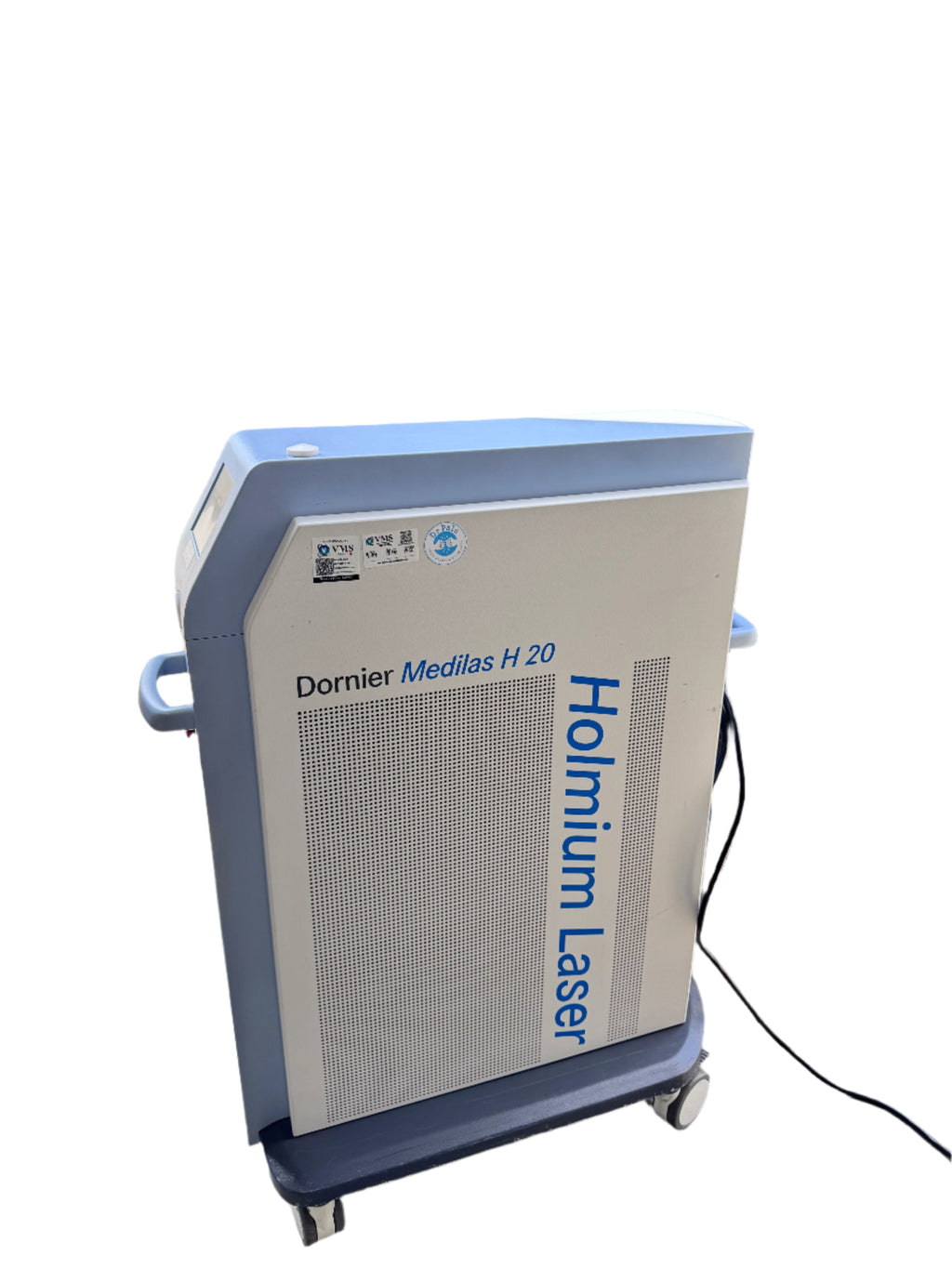

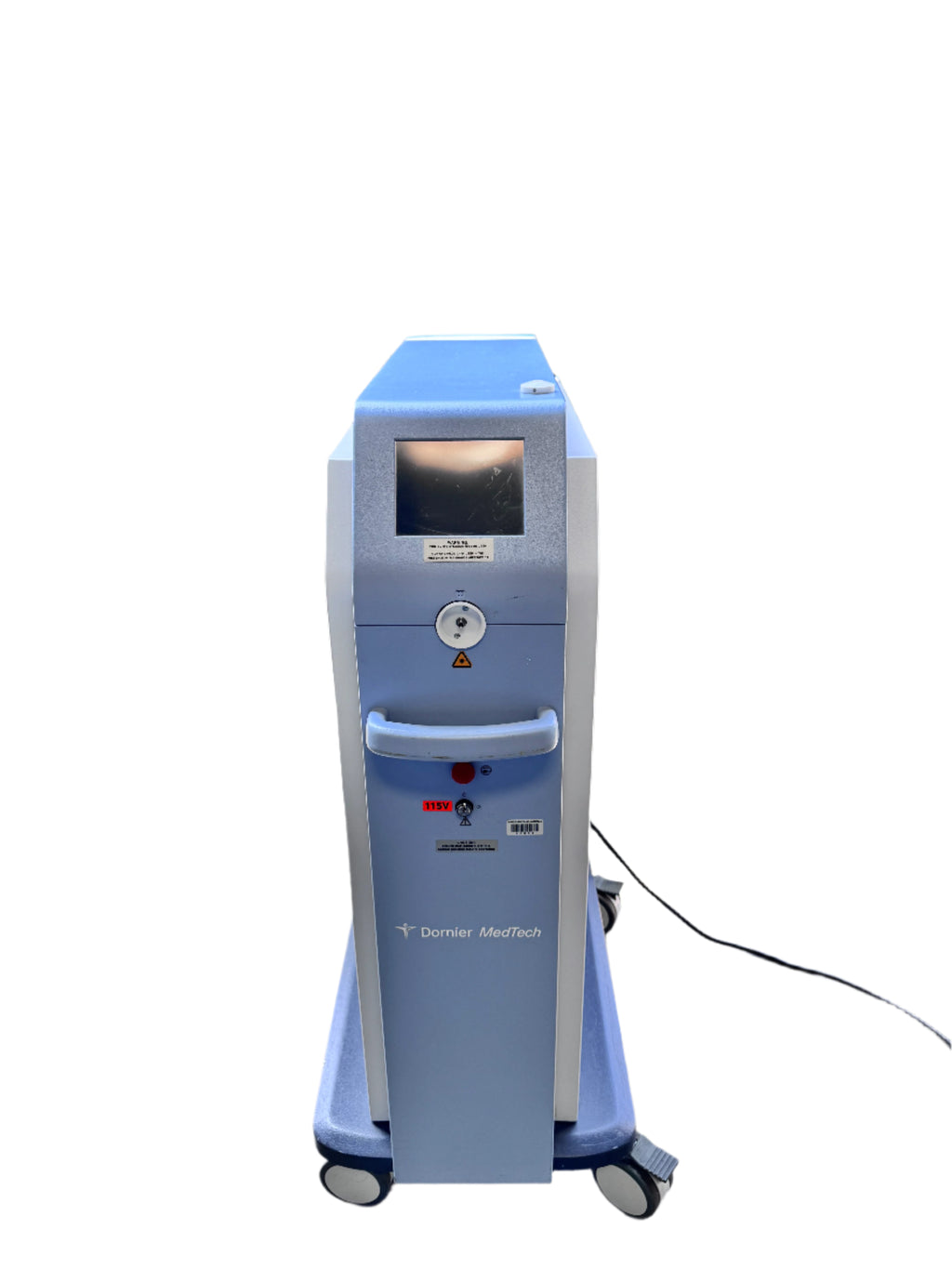

The Dornier Medilas H 20 is a pulsed solid-state Holmium:YAG laser system designed for the fragmentation of urinary and kidney stones (lithotripsy), as well as for soft tissue applications across multiple medical specialties. It emits laser radiation at a wavelength of 2080 nm (commonly referred to as 2.1 μm), which is highly absorbed by water, resulting in precise ablation with minimal penetration (~0.4 mm), making it ideal for delicate tissue work and stone fragmentation.
Key Features:
- Laser Type & Power:
- Solid-state Holmium:YAG laser
- Maximum output: 20 watts radiant power
- Wavelength: 2080 nm (2.1 μm)
- Pulse energy: 1.8–2.5 Joules per pulse
- Pulse duration: 350 microseconds
- Pulse frequency: User-adjustable, with pedal control for real-time adjustments.
- Operating Modes:
- Continuous-wave and pulsed operation
- Multiple pulse modes: continuous, pedal-controlled burst, and panel-controlled burst
- Green aiming beam for enhanced targeting during procedures.
- User Interface:
- Touchscreen color display for easy parameter adjustment and protocol setup
- User-definable protocol settings for flexibility and workflow efficiency.
- Delivery System:
- Compatible with a range of sterile, ethylene oxide-sterilized fiber optic delivery systems (SMA 905 connector)
- Thin, flexible fibers allow access to virtually all stone locations and soft tissue targets in endoscopic applications.
- Cooling:
- Integrated water cooling system with water/air exchangers for reliable operation.
- Applications:
- Urology: Lithotripsy (fragmentation of ureteral, kidney, and bladder stones), treatment of strictures, tumor ablation
- Arthroscopy, pulmonology, gastroenterology, gynecology, ENT, and general surgery for cutting, vaporization, ablation, and coagulation of soft tissue
- Usable with endoscopic equipment (laparoscopes, cystoscopes, hysteroscopes, bronchoscopes, gastroscopes, colonoscopes) or in open surgery.
- Physical Specifications:
- Height: 43 in
- Length: 30 in
- Width: 17 in
- Weight: 176 lbs.
