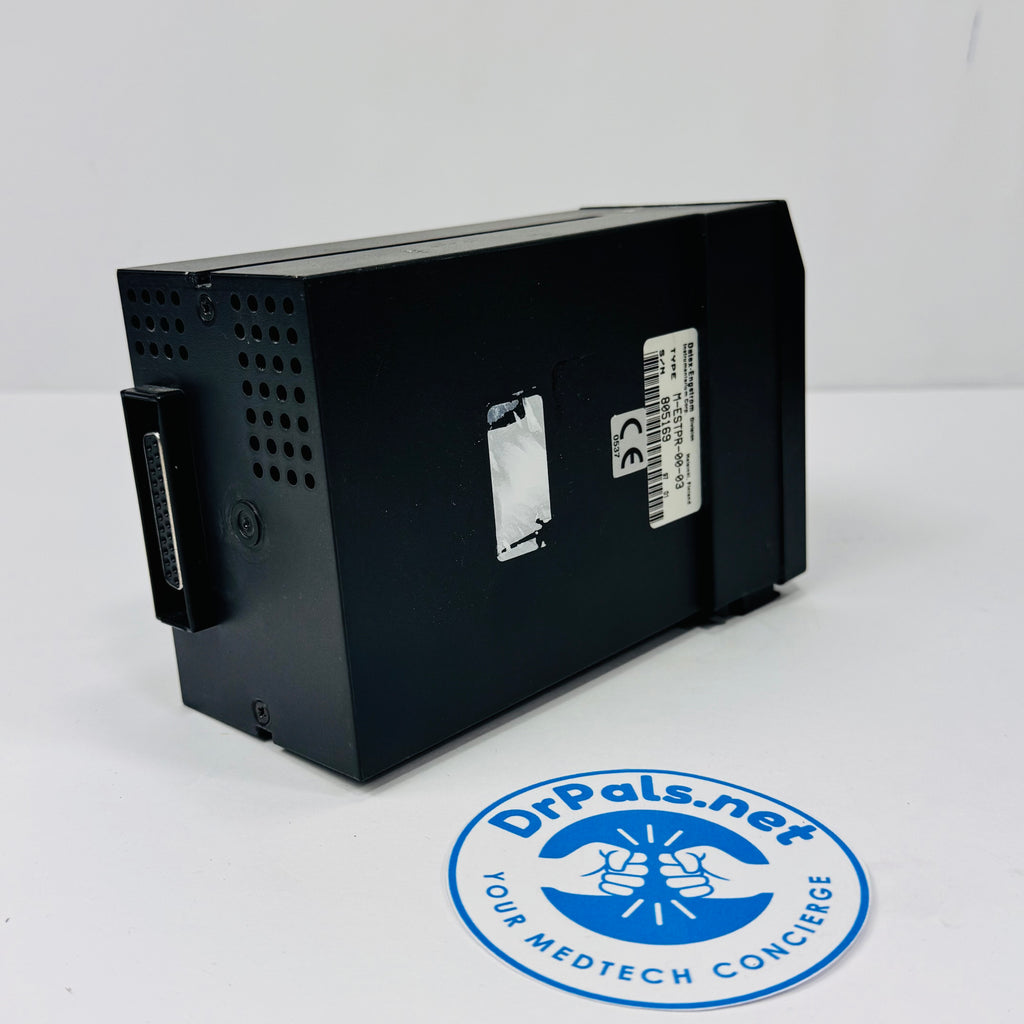

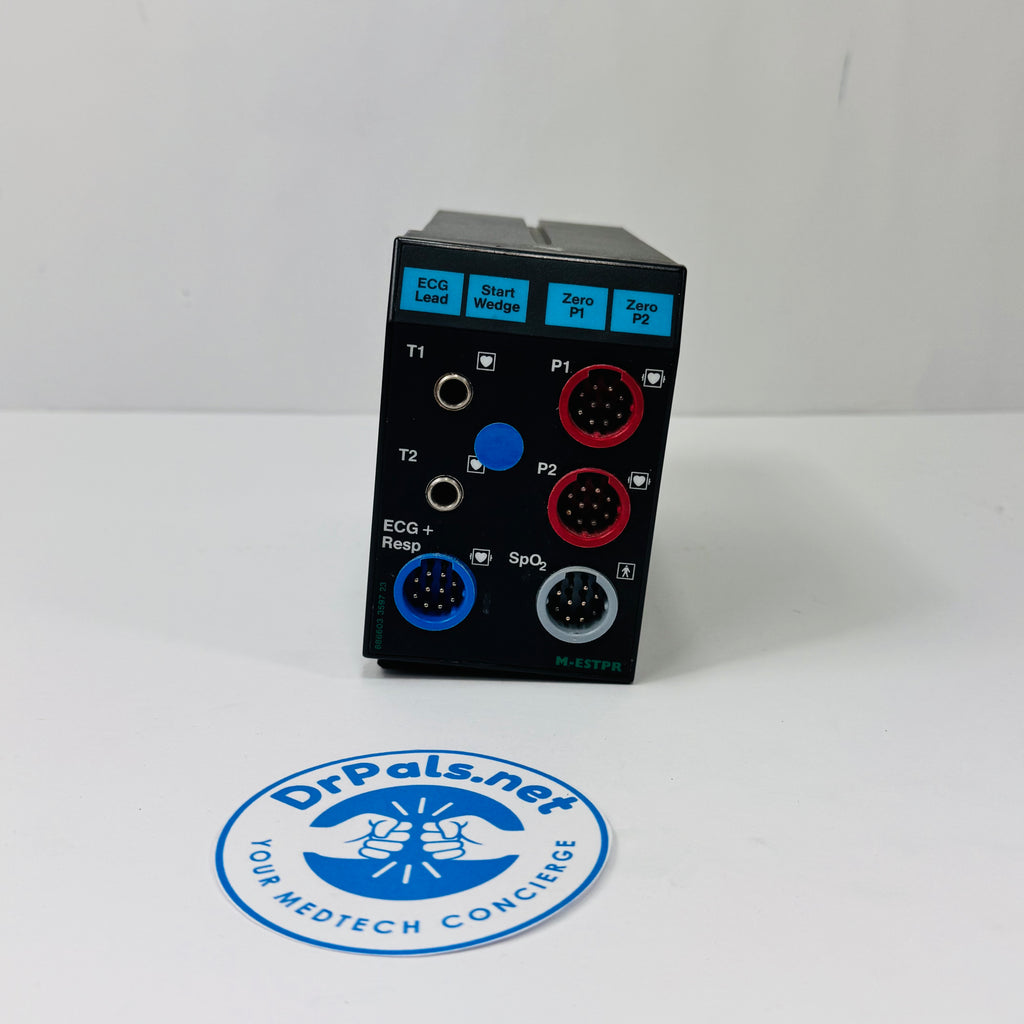

This revision combines five core parameters into one module weighing 0.6 kg with 6W power draw. It supports 3/5-lead ECG (diagnostic/monitor/ST modes), Nellcor-compatible SpO₂ (40-100%), YSI 400-series temperature probes (10-45°C), two invasive pressure channels (-40 to 320 mmHg), and impedance respiration (4-120 bpm).
Key Features
- ECG: 12-lead capable with pacemaker detection, 0.05-150 Hz diagnostic bandwidth, ST analysis.
- SpO₂: 40-100% range, ±2% accuracy (80-100%), pulse rate 30-250 bpm.
- Temperature: Dual channels, ±0.1°C accuracy (25-45°C), automatic self-test.
- Pressure: Two channels with zero/calibration, 12.5-50 mm/s sweep.
- Respiration: Impedance method, 4-120 bpm, for patients >3 years old.
