This revision 02 module uses high-resolution thermal array printing technology on 50mm Z-fold paper, capturing up to 3 simultaneous waveforms (ECG, SpO2 pleth, pressure, respiration, etc.) at selectable speeds of 12.5, 25, or 50 mm/s. It supports both real-time printing and snapshot modes triggered manually or by alarms/events.
Key Features
- Paper: 50 mm wide thermal Z-fold, ~20m roll length, automatic feed/advance.
- Print quality: High-resolution (8 dots/mm), 3-channel capability with timestamp, alarms, and measurements.

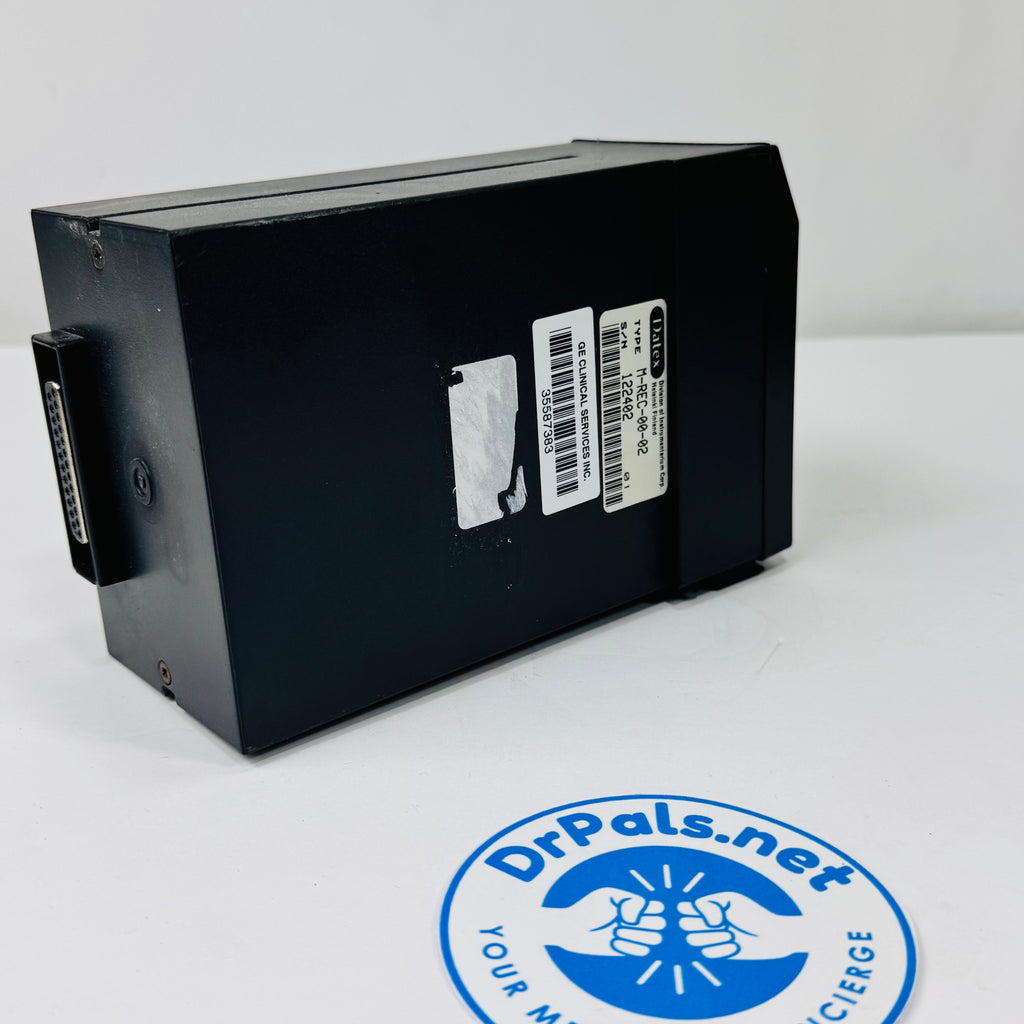

- Compatibility: Plugs directly into S/5 Compact, AS/3, Cardiocap/5 bays; power via host monitor.

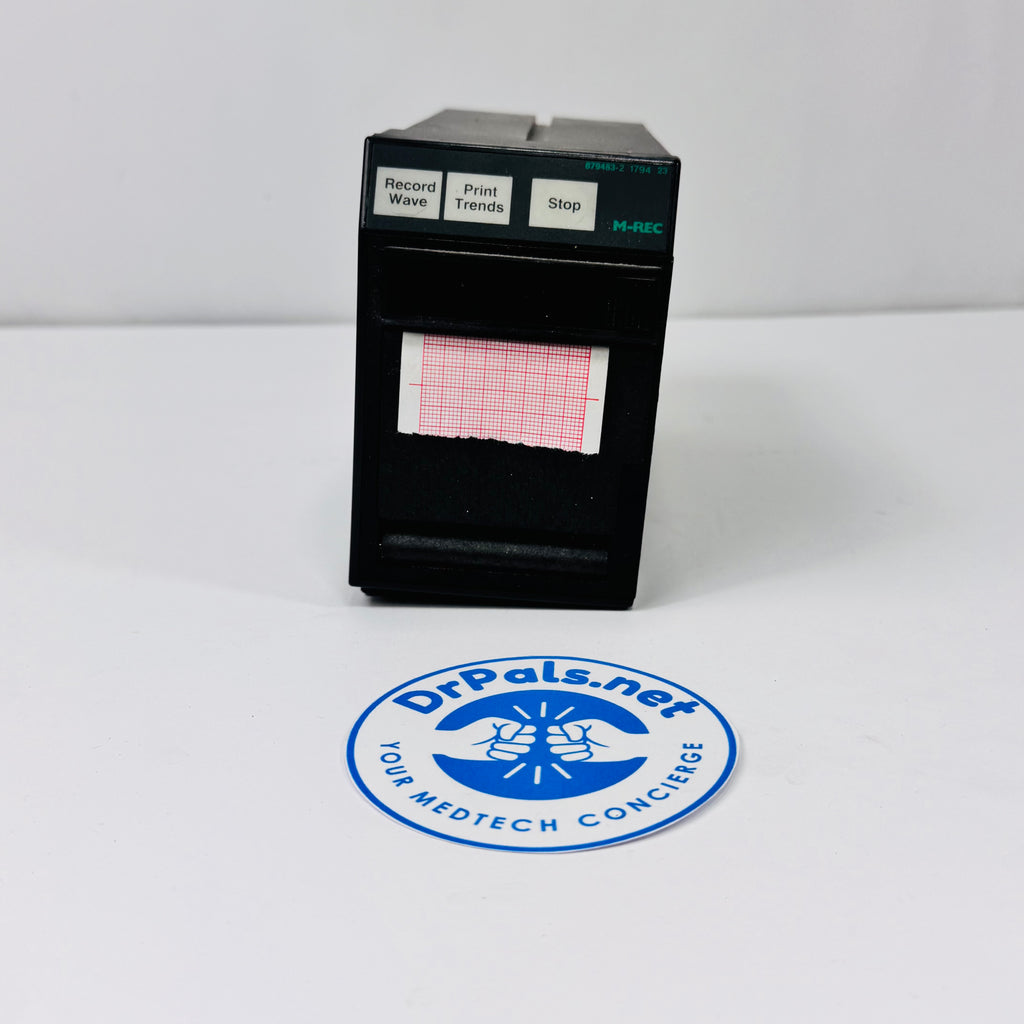

- Operation: Front panel controls for speed/mode; stores ~40 seconds of pre-trigger data for events.
