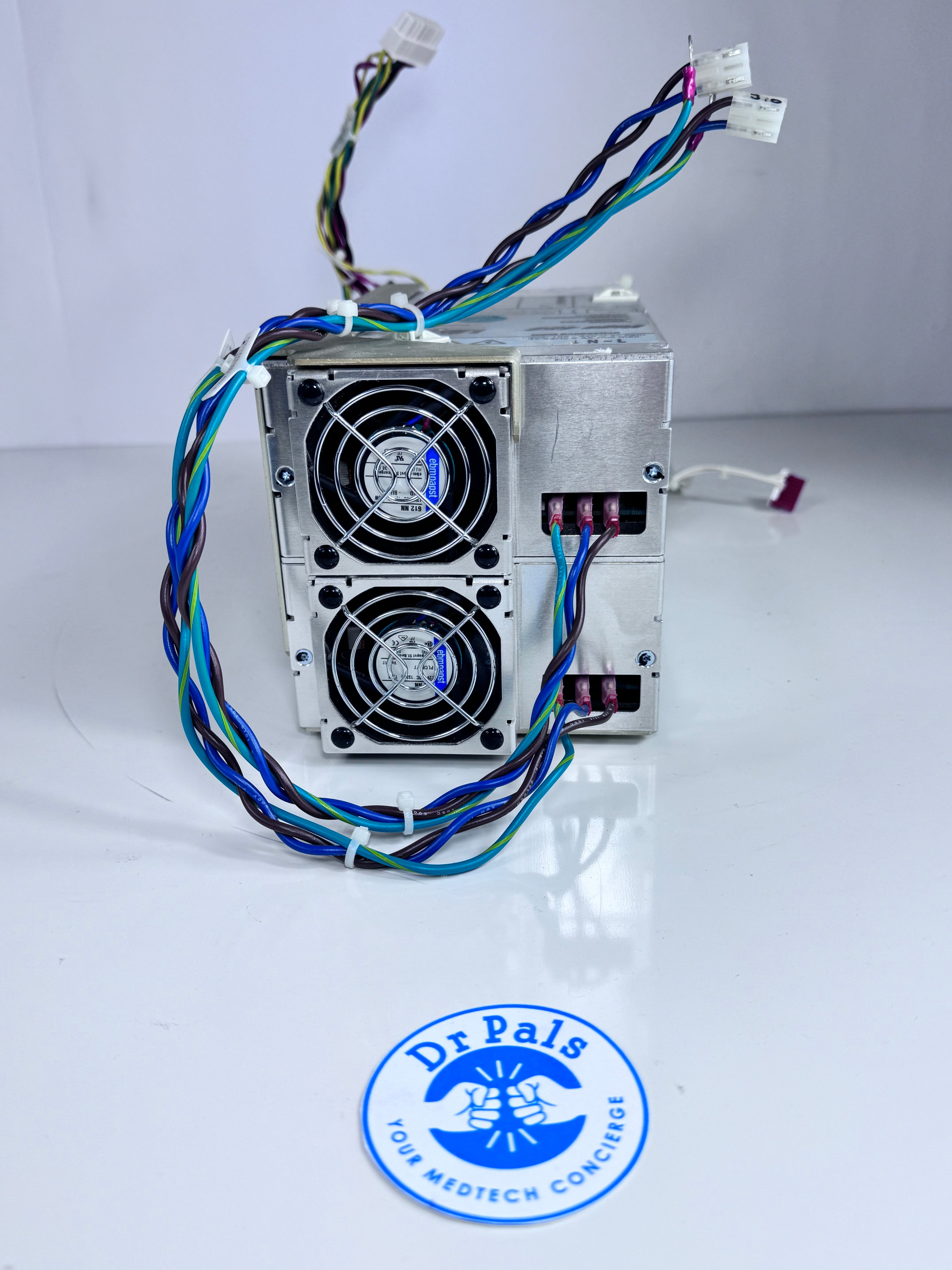

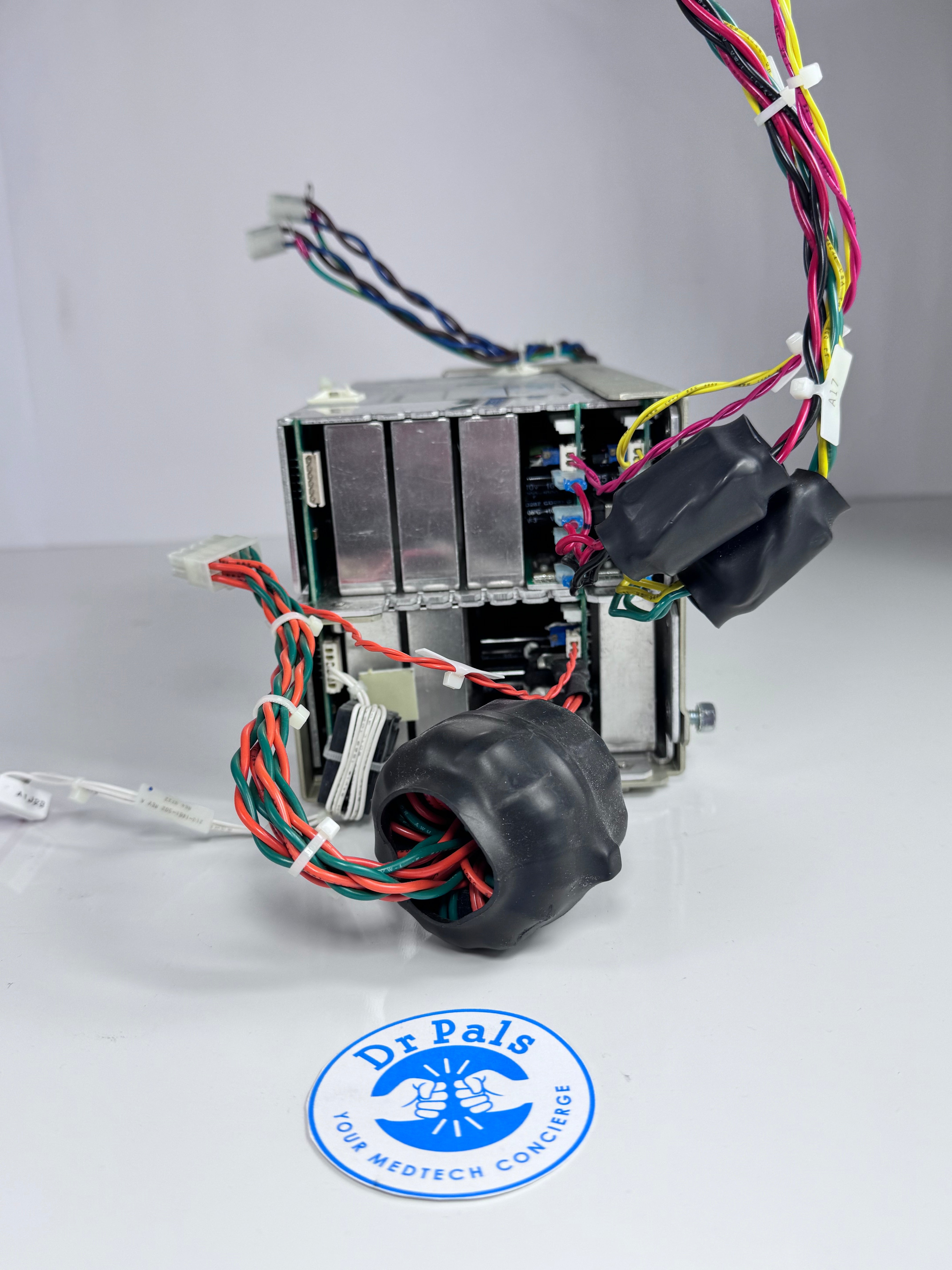

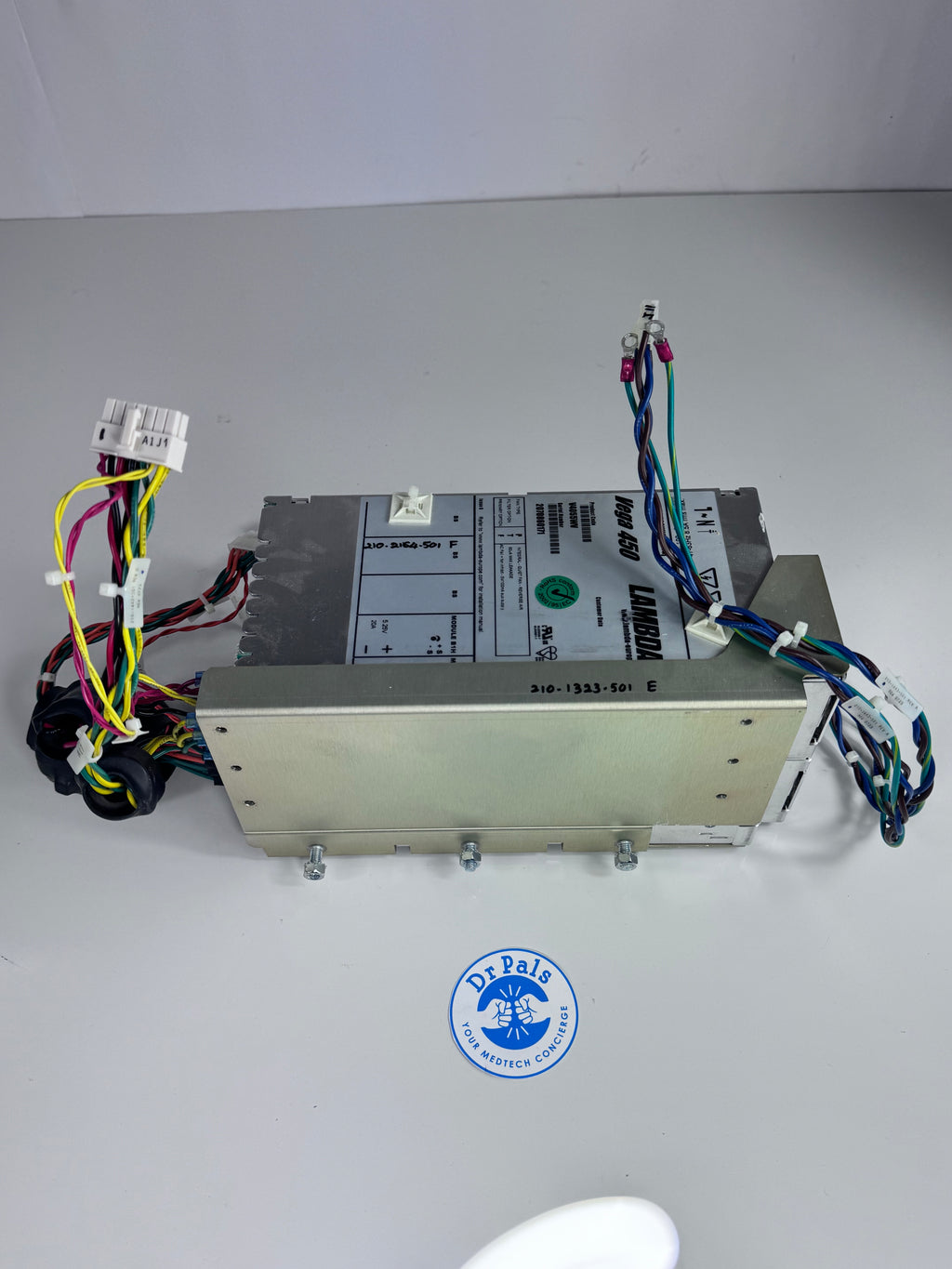

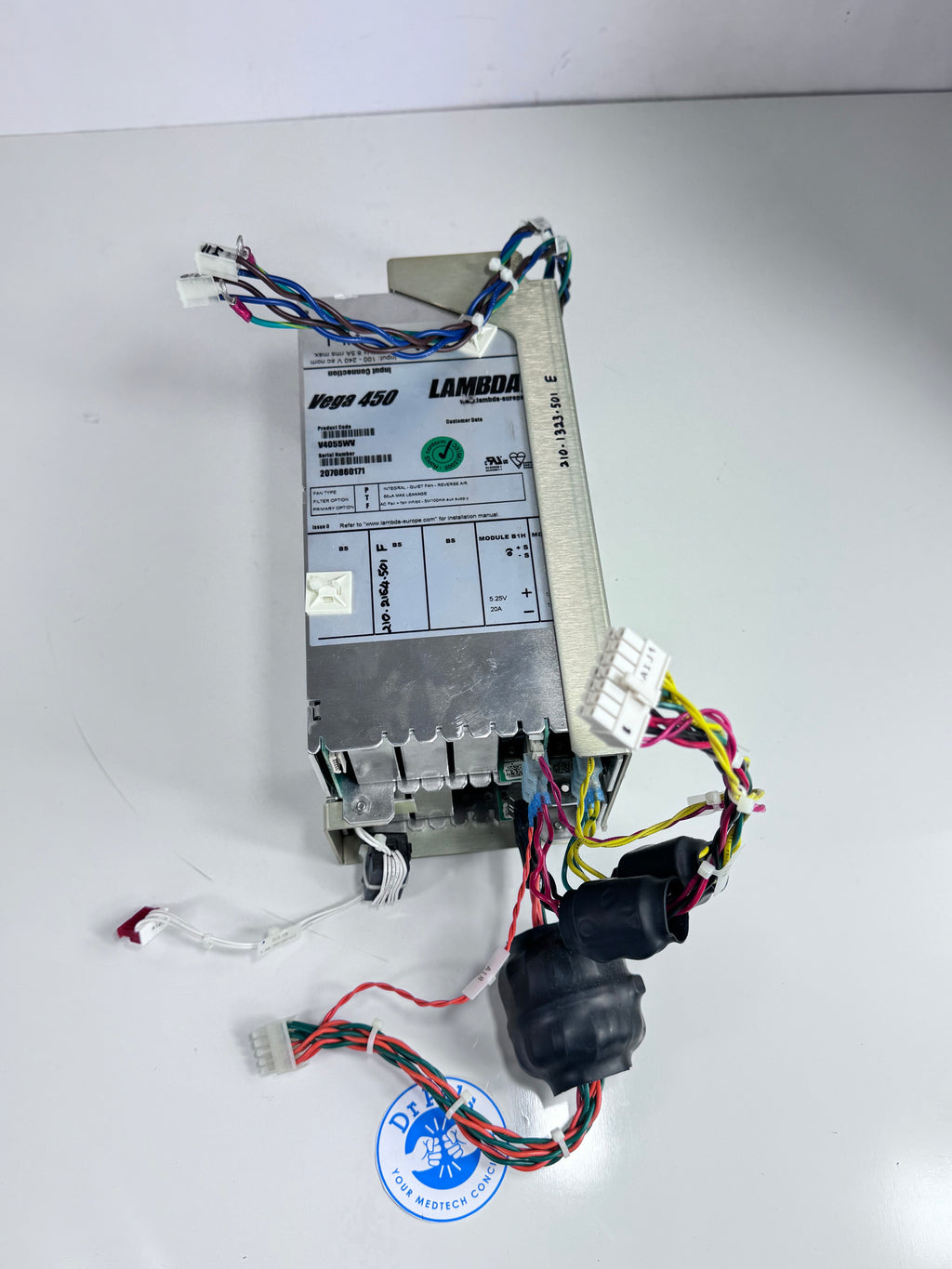

The Lambda Vega 450 V4055WV is a configurable, high-efficiency modular AC-DC power supply delivering up to 450 watts of output. This unit features a flexible modular design, allowing between one and ten adjustable outputs with voltages ranging from 1.8V to 64V and output currents up to 120 amps—making it suitable for demanding medical, laboratory, and industrial applications. Designed for reliability and safety, the Vega 450 models support features such as AC fail signal, current sharing, global/fan inhibit, and DC-good signals. It is approved for both IEC 62368-1 and medical 60601-1 standards and offers selectable cooling options with a high power density.
Key Features:
- 450W total output power in a compact, enclosed unit
- Input voltage range: 90–264 VAC; also supports 100–240V, 47–63Hz operation
- Configurable for 1–10 outputs (1.8V–64V, up to 120A per channel)
- Output options include single or dual modules with screw or PCB terminal connections
- Built-in monitoring: AC fail, current share, global/fan inhibit, and DC-good signals
- No minimum load required on any channel
- Power density up to 5.8W/cu in
- Certified for IEC 60950-1, IEC 62368-1, and medical 60601-1 applications
- Operating efficiency: ~75% typical
- Robust cooling options, various mounting solutions available
- The Lambda Vega 450 V4055WV modular power supply is favored for its flexibility, medical compliance, and robust multi-output performance in critical environments.
-
