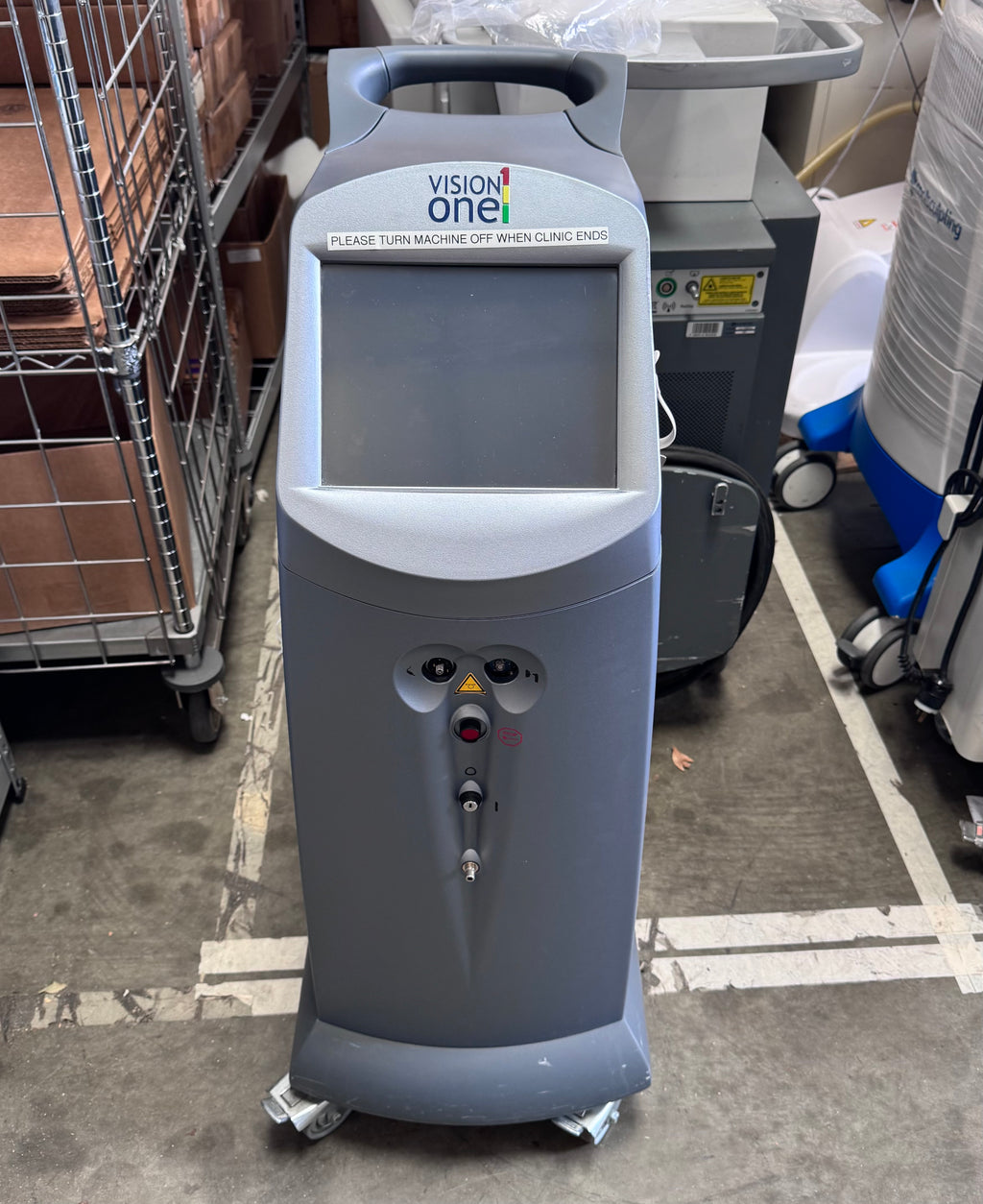

The Lumenis Vision One is a modular, multi-wavelength photocoagulation laser system designed for the treatment of retinal diseases such as diabetic retinopathy and other vascular disorders. It features green (532 nm), yellow (577 nm), and red (659 nm) laser wavelengths, providing flexibility for a wide range of ophthalmic procedures. The Vision One incorporates advanced safety and usability features, including SureSpot Optics for precise and safe energy delivery, Smart Fiber Technology for automatic device recognition and safety adjustments, and a user-friendly touchscreen interface. Its CaseSaver mode ensures continued operation even if one wavelength becomes unavailable, enhancing reliability in clinical settings.
Key Features:
- Multi-wavelength capability: 532 nm (green), 577 nm (yellow), 659 nm (red) for versatile retinal treatments.
- SureSpot Optics: Maintains sharp, focused energy on the retina while minimizing power density at the cornea and lens for increased safety and treatment precision.
- Smart™ Fiber Technology: Automatically recognizes connected delivery devices and adjusts power settings for enhanced safety; alerts users if components are not properly attached.
- CaseSaver™ Mode: Allows continued use of remaining wavelengths if one becomes inoperable, ensuring uninterrupted patient care.
- User interface: Color touchscreen and illuminated remote keypad for easy parameter adjustments and wavelength switching.
- Flexible delivery: Compatible with a wide range of accessories, including slit lamp adapters, endoprobes, and laser indirect ophthalmoscopes.
- Memory settings: Stores frequently used treatment parameters for quick recall.
- Power and spot size:
- 532 nm: 50–2000 mW
- 577 nm: 50–1500 mW
- 659 nm: 50–800 mW
- Spot sizes: 50–1000 µm (with LaserLink Z or InSight), 50–500 µm (with H/S LaserLink).
- Pulse duration: 0.01 to 3.0 seconds; treatment intervals 0.05 to 1.0 seconds and single pulse.
- Aiming beam: Contrasting color, adjustable intensity, 635 nm nominal, <1.0 mW.
- Cooling: Air-cooled with thermoelectric enhancement.
- Dimensions/weight: 105 cm x 45 cm x 63 cm (H x W x D); 57 kg (126 lbs).
