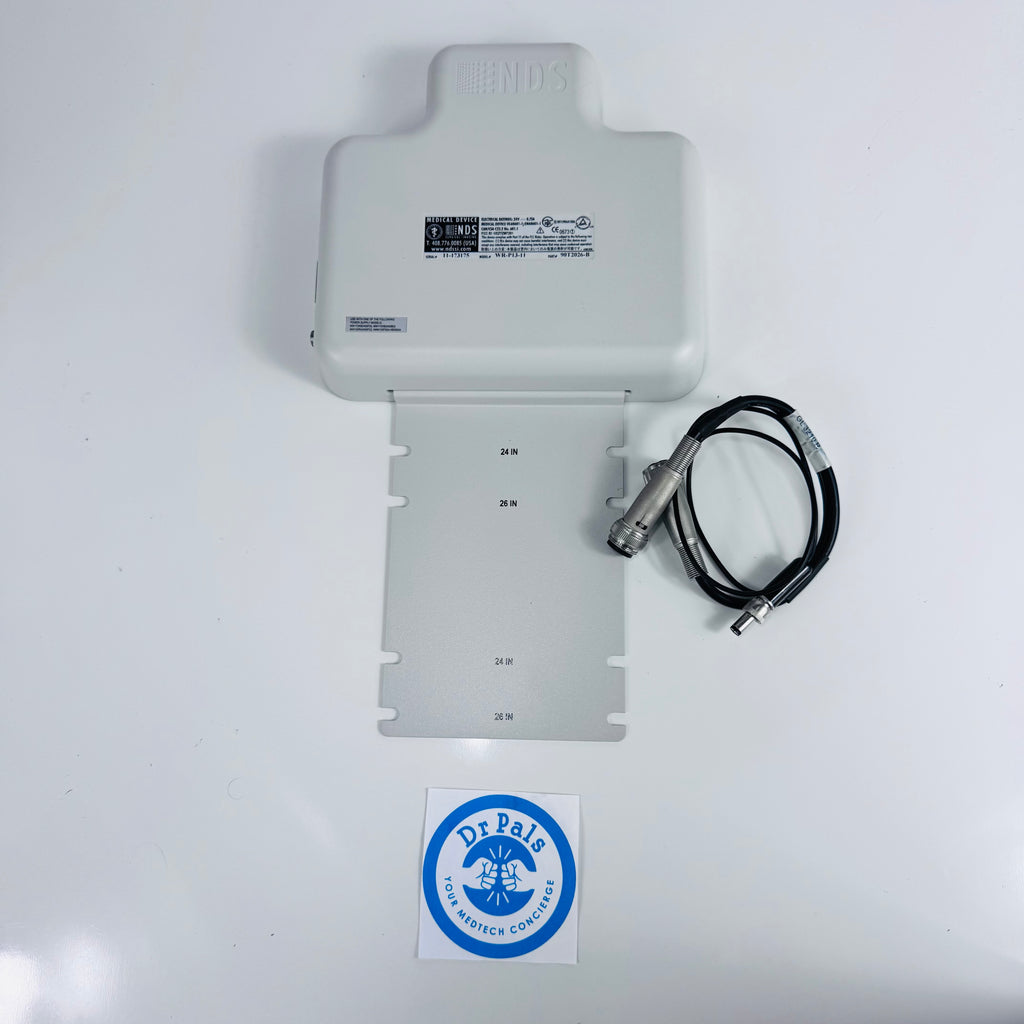

The NDS WR-P13-11 is a medical-grade wireless video receiver designed for use with the NDS ZeroWire Ultra HD wireless video system. It facilitates the reception of high-definition wireless video signals from endoscopic cameras, enabling a cable-free surgical environment that eliminates tripping hazards and simplifies room setup. The receiver is compact and can be mounted on monitors or carts, with power options including direct power supply or an optional Y-adapter cable. Its robust design supports up to nine communication channels with low latency, high data rates, and encrypted video transmission to ensure reliable, secure performance in clinical environments.
Key Features
- Receiver unit for NDS ZeroWire Ultra HD wireless endoscopy system
- Supports multiple video input formats (DVI, 3G SDI, HD-SDI, SDI) via transmitter
- Operates in Ultra Wideband frequency (3.1 to 4.8 GHz)
- Up to 9 channels available to minimize interference and support multiple systems simultaneously
- Low system latency of less than one video frame
- 128-bit AES hardware encryption for secure transmission
- Compact, mountable form factor
- Power supply options: 24 VDC via wall adapter or optional Y-adapter cable
- Certified electromagnetic compatibility (EMC) for medical environments
- Operating environment: 10° to 35°C, 10% to 80% humidity (non-condensing)
- Supports HD video modes including 1080p, 720p, and standard video resolutions
