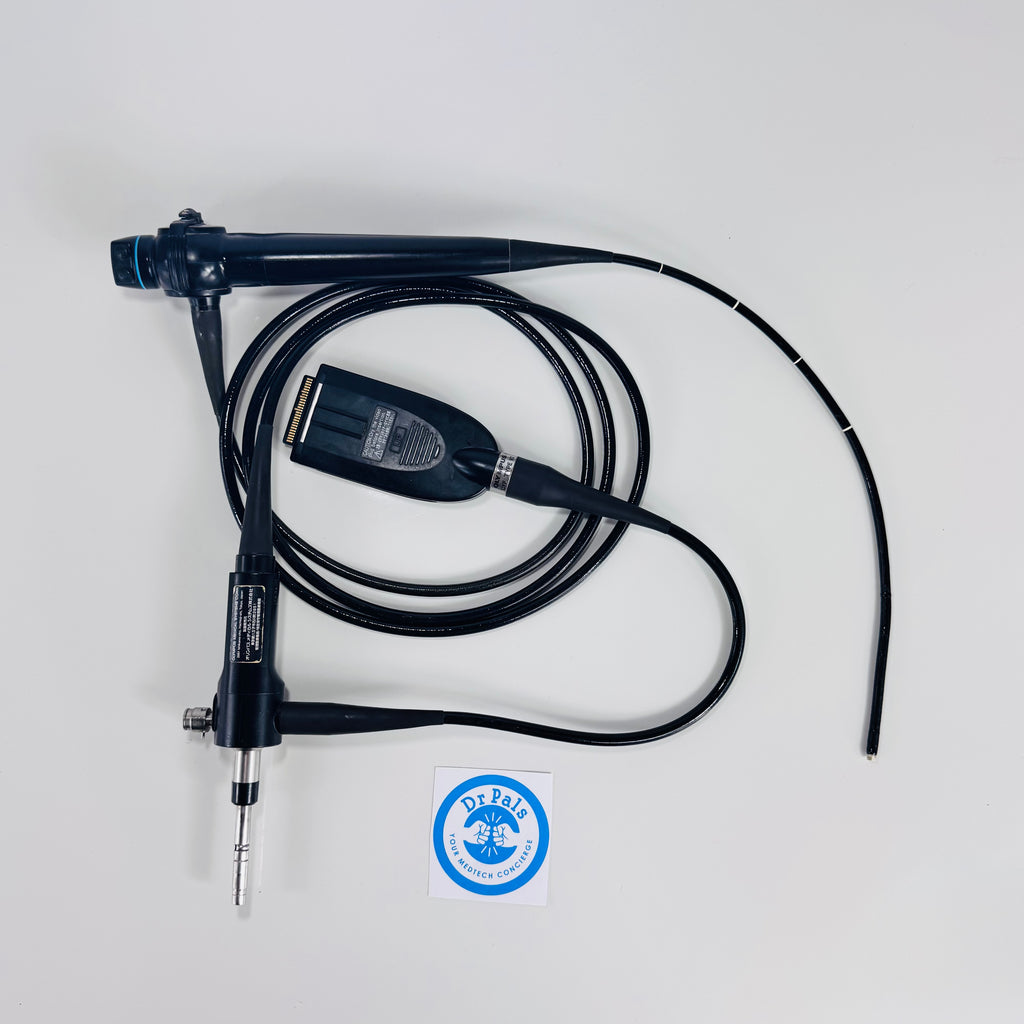

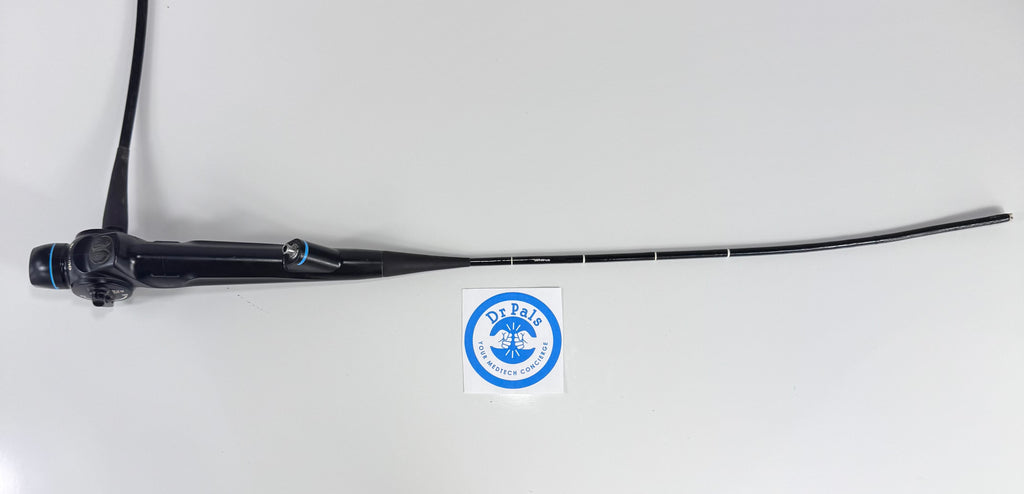

The Olympus CYF-V2 is an advanced flexible cystoscope and nephroscope designed for superior diagnostic and therapeutic performance in urology. Incorporating a streamlined EvolutionTip for exceptional insertion comfort, the CYF-V2 provides high-definition imaging powered by a multicolor CCD chip and is compatible with Olympus Narrow Band Imaging (NBI) technology for enhanced visualization of vascular structures. Its generous 2.2 mm working channel enables use of a wide variety of endoscopic instruments, making it suitable for both bladder and kidney procedures. The scope’s design emphasizes operator efficiency with four programmable switches on an ergonomic control section and provides a broad field of view for comprehensive assessment.
Key Features:
- Flexible cysto-nephro videoscope for both bladder and kidney applications.

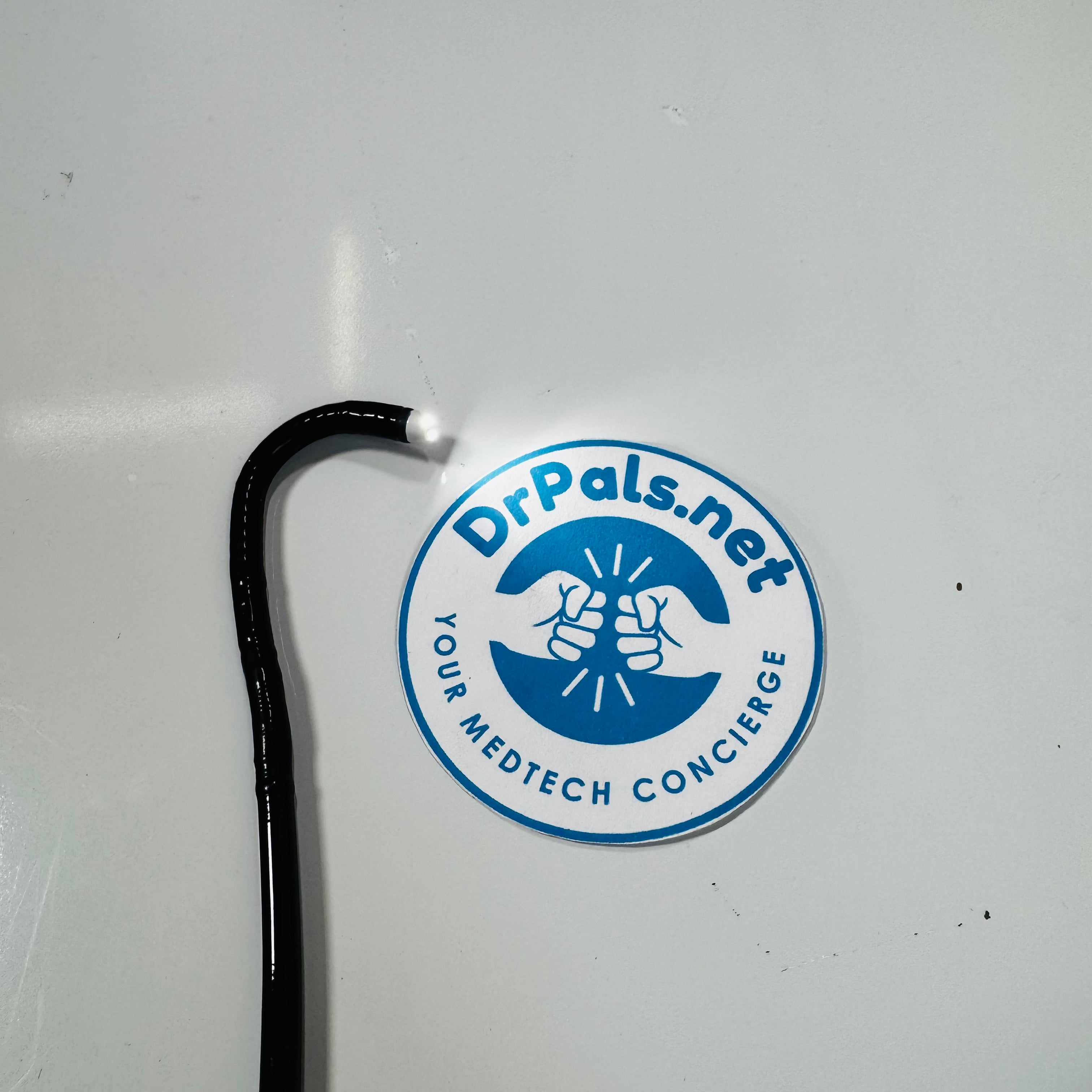

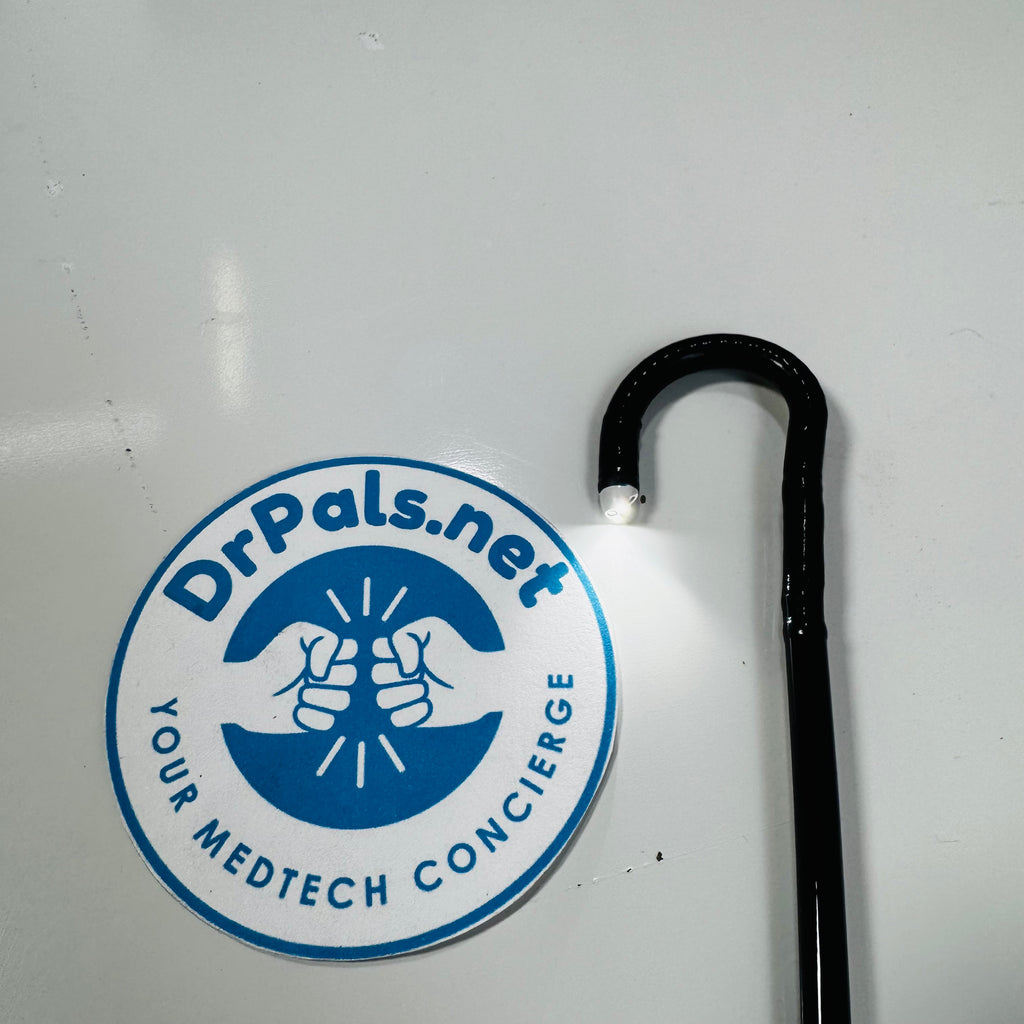

- EvolutionTip design for smooth, comfortable insertion and minimal patient discomfort.
- NBI compatibility for improved visualization of mucosal and vascular details without dyes or contrast agents.
- Large 2.2 mm (6.6 Fr) working channel accommodates all standard urological endotherapeutic devices.
- Field of view: 120° for simultaneous observation of both ureteral orifices.

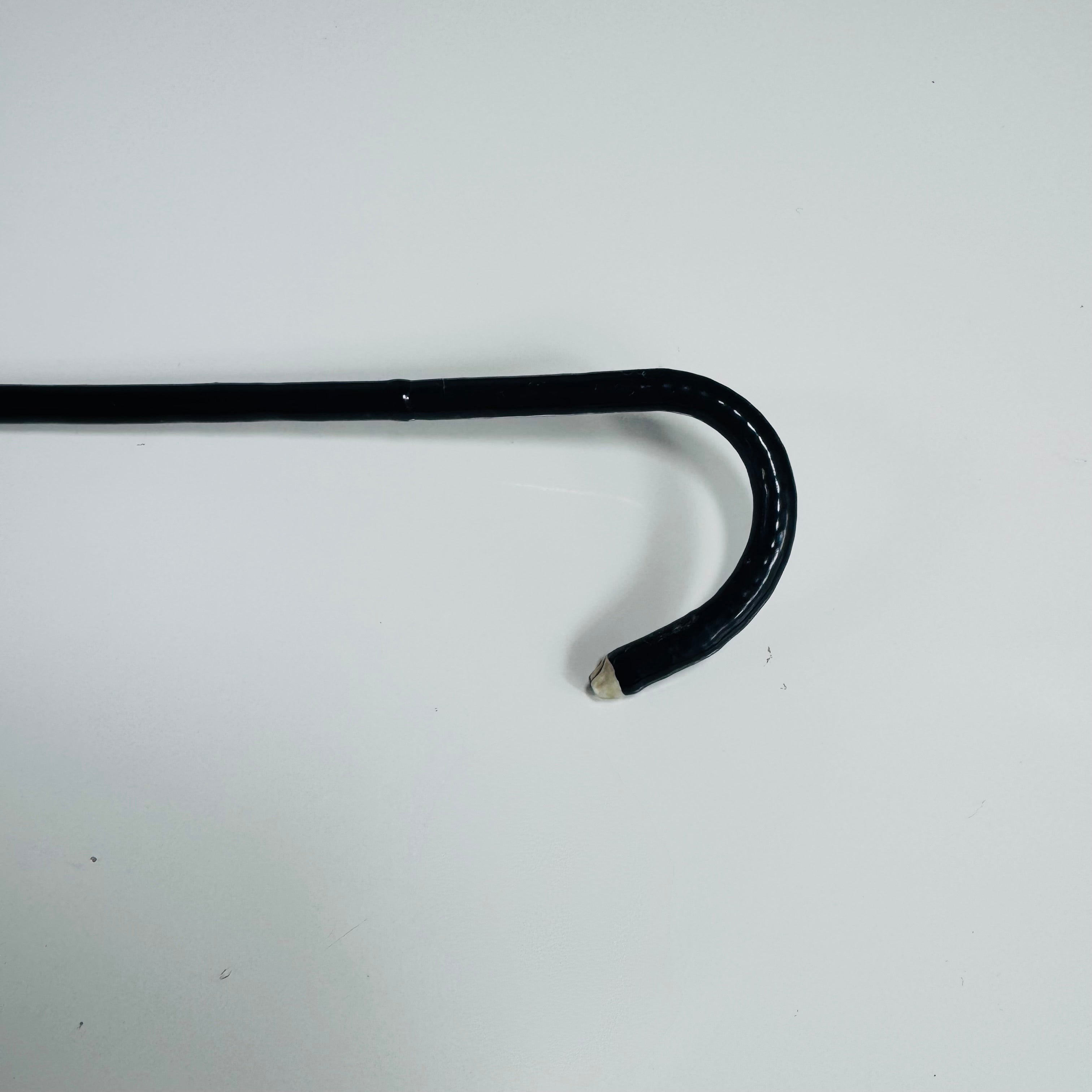

- Angulation: 210° up / 120° down for precise navigation and comprehensive anatomical access.
- Outer diameter: 4.8 mm distal end (12.9 Fr); insertion tube 5.4 mm (16.2 Fr) for atraumatic access.
- Working length: 380 mm provides access for a variety of urological procedures.
- Depth of field: 3–50 mm for clear images across relevant anatomical distances.
- Multicolor CCD chip delivers clear, stable, high-resolution video imaging.

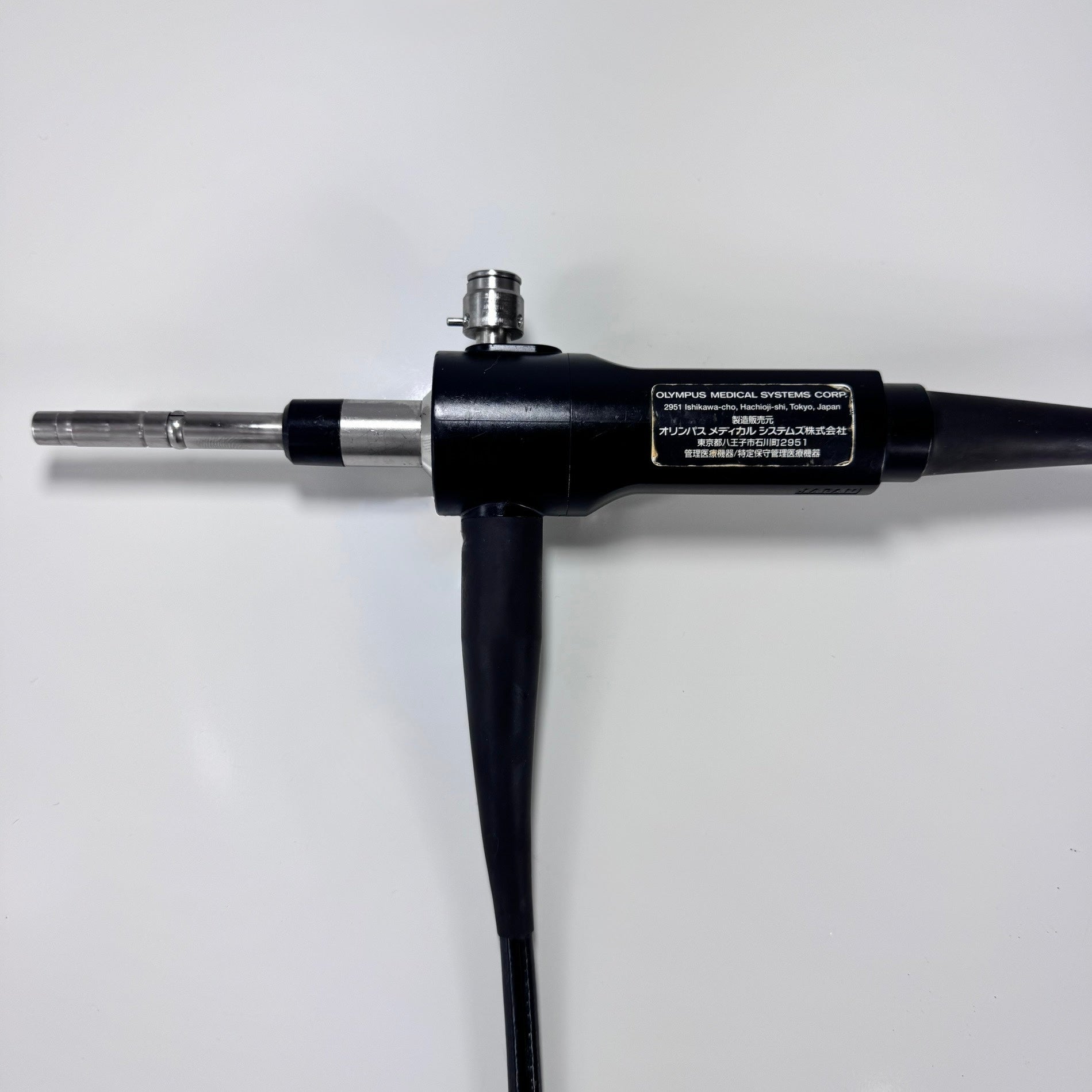

- Four programmable switches on the ergonomically designed control section for user customization and workflow efficiency.
- Passive bending technology at the distal tip and variable shaft stiffness for easier insertion and maneuverability.
- Compatible with electrosurgical instruments for treatments such as hemostasis and biopsies.
- Designed for left- and right-handed operators with natural grip and ergonomic handling.
