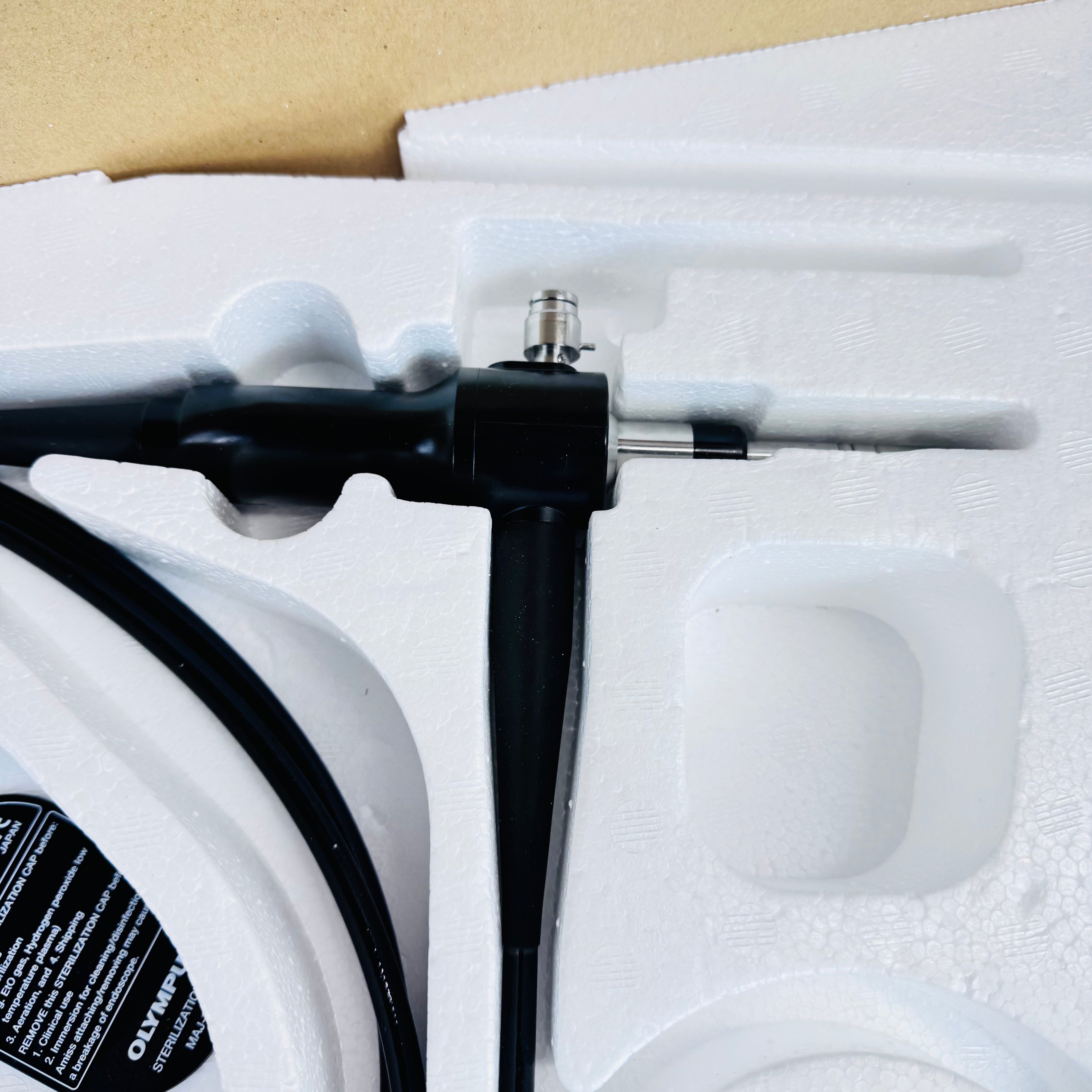

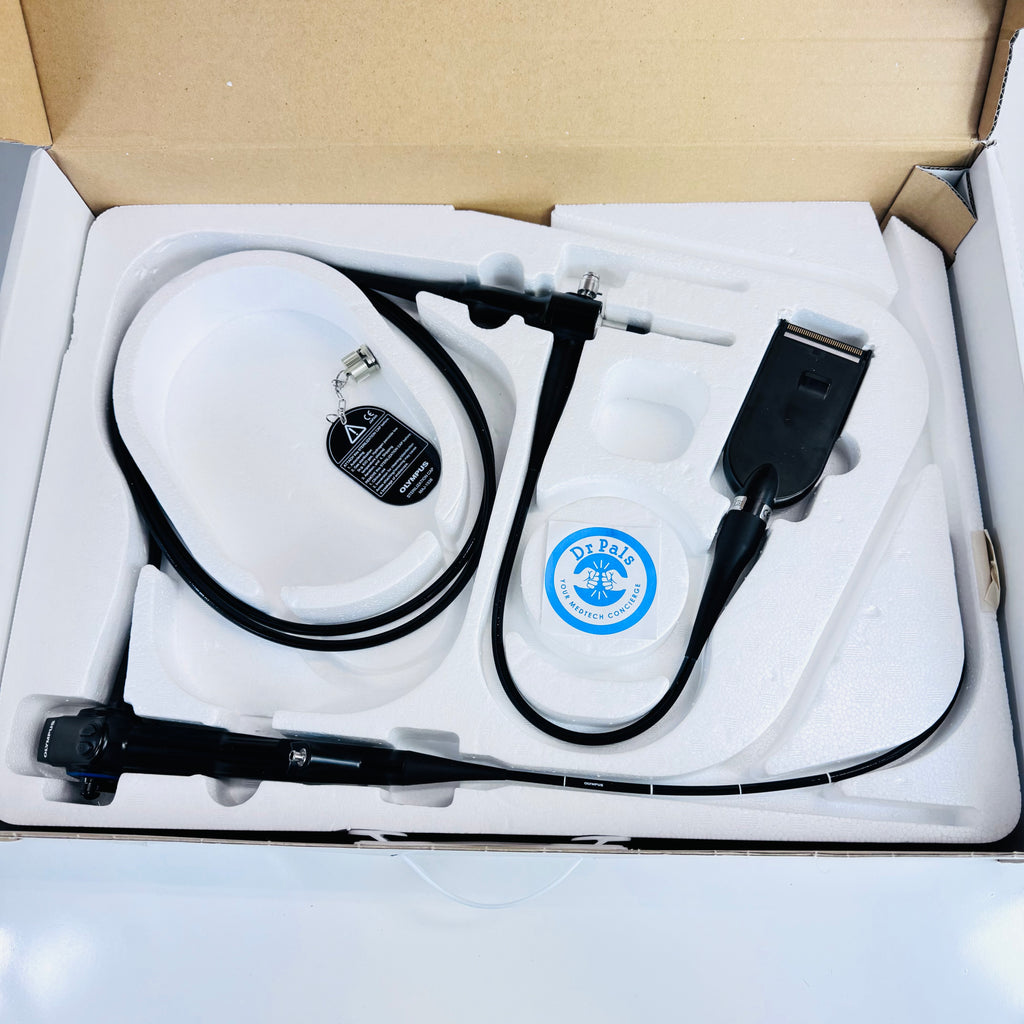

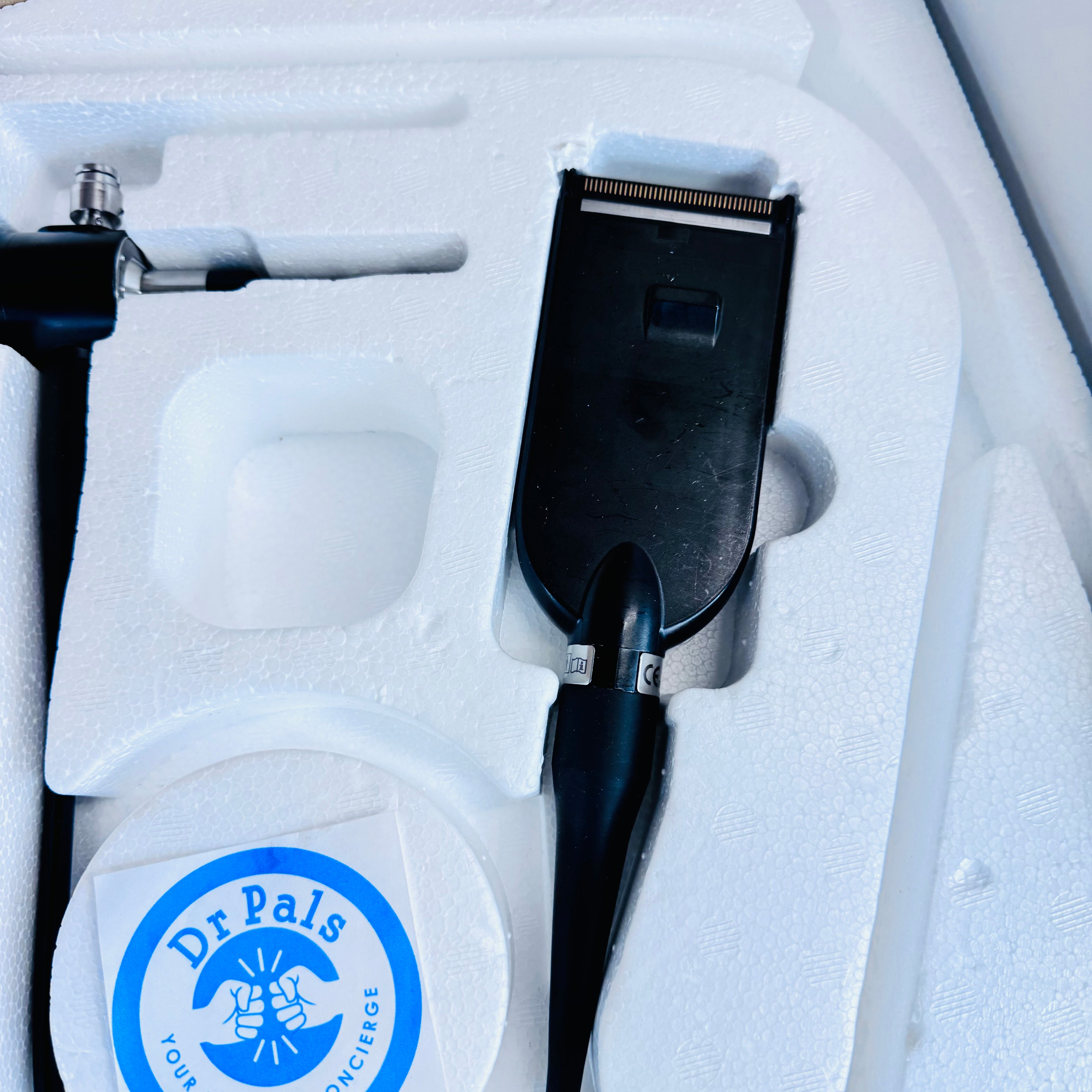

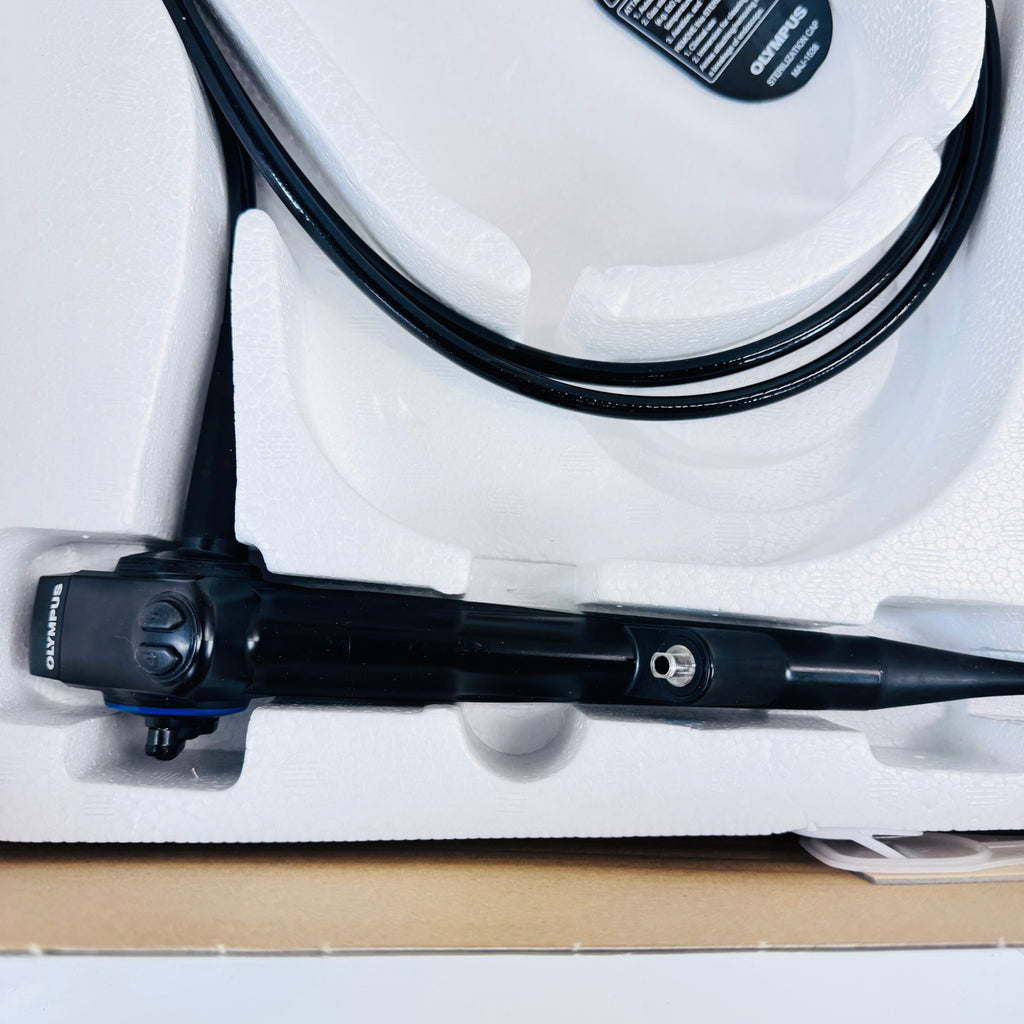

The Olympus CYF-VH or CYF-VHR is a flexible high-definition (HD) cysto-nephro videoscope (cystoscope), designed for advanced bladder and upper urinary tract diagnostics.
Key Features:
• High-Definition Imaging:
Provides HD visualization in a slim, flexible design. The scope delivers sharper images and improved diagnostic accuracy.
• Narrow Band Imaging (NBI):
Offers 20% brighter NBI compared to previous models, enhancing visualization of capillary networks and mucosal morphology, which can improve detection of carcinoma in situ and other lesions.
• EvolutionTip Design:
The redesigned tip features smoother edges and increases light output by 150% over earlier versions, improving image quality and patient comfort.
• Variable Stiffness Shaft:
Allows the operator to adjust shaft rigidity for optimal control and maneuverability, minimizing patient discomfort and enabling access to all areas of the bladder.
Wide Field of View & Angulation:
• Field of view: 120° panoramic inspection.
• Angulation: 220° upward, 130° downward for comprehensive bladder visualization.
• Working Channel:
• Inner diameter: 2.2 mm (6.6 Fr), suitable for standard urological instruments.
• Dimensions:
• Distal end outer diameter: 2.7 mm (8.1 Fr)
• Insertion tube outer diameter: 5.5 mm (16.5 Fr)
• Working length: 380 mm
• Total length: 660 mm.
Clinical Applications:
• Diagnostic and follow-up cystoscopy
• Bladder cancer management
• Upper urinary tract exploration (nephroscopy)
