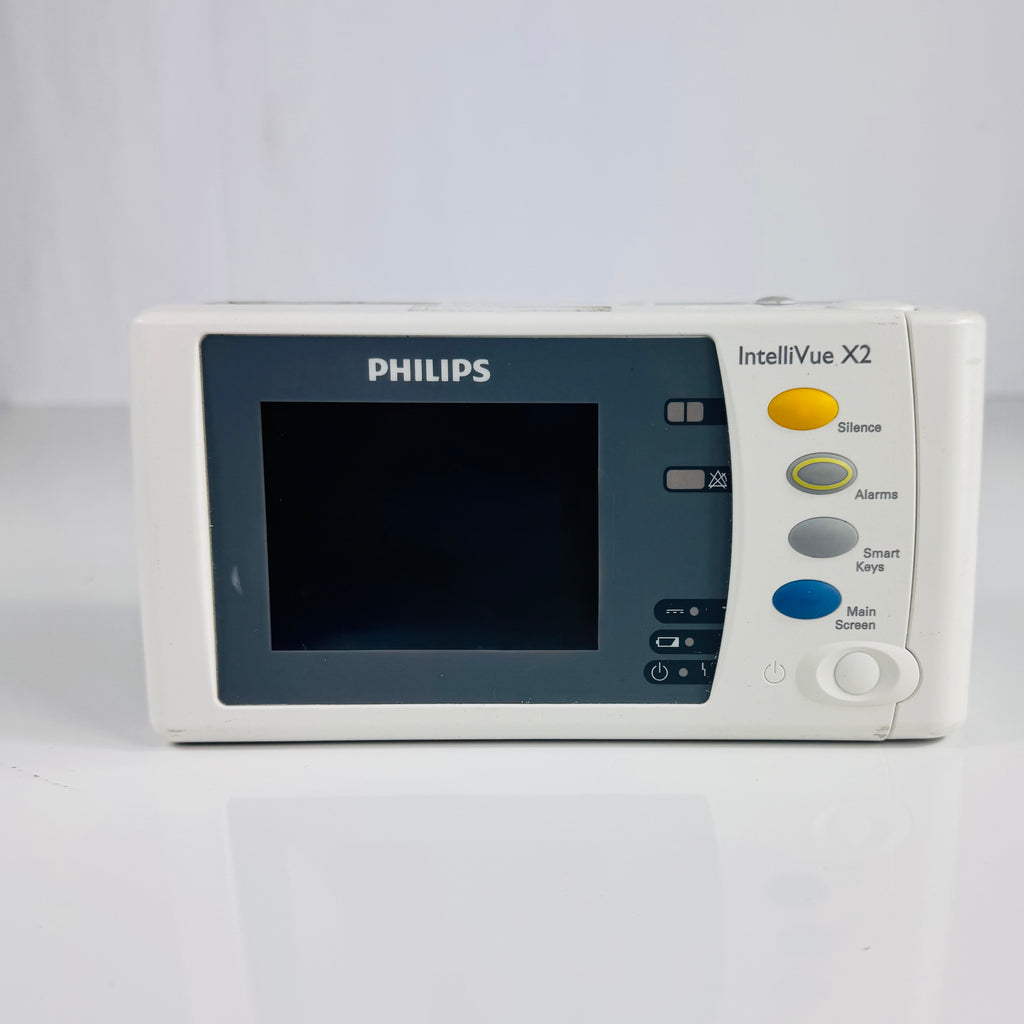

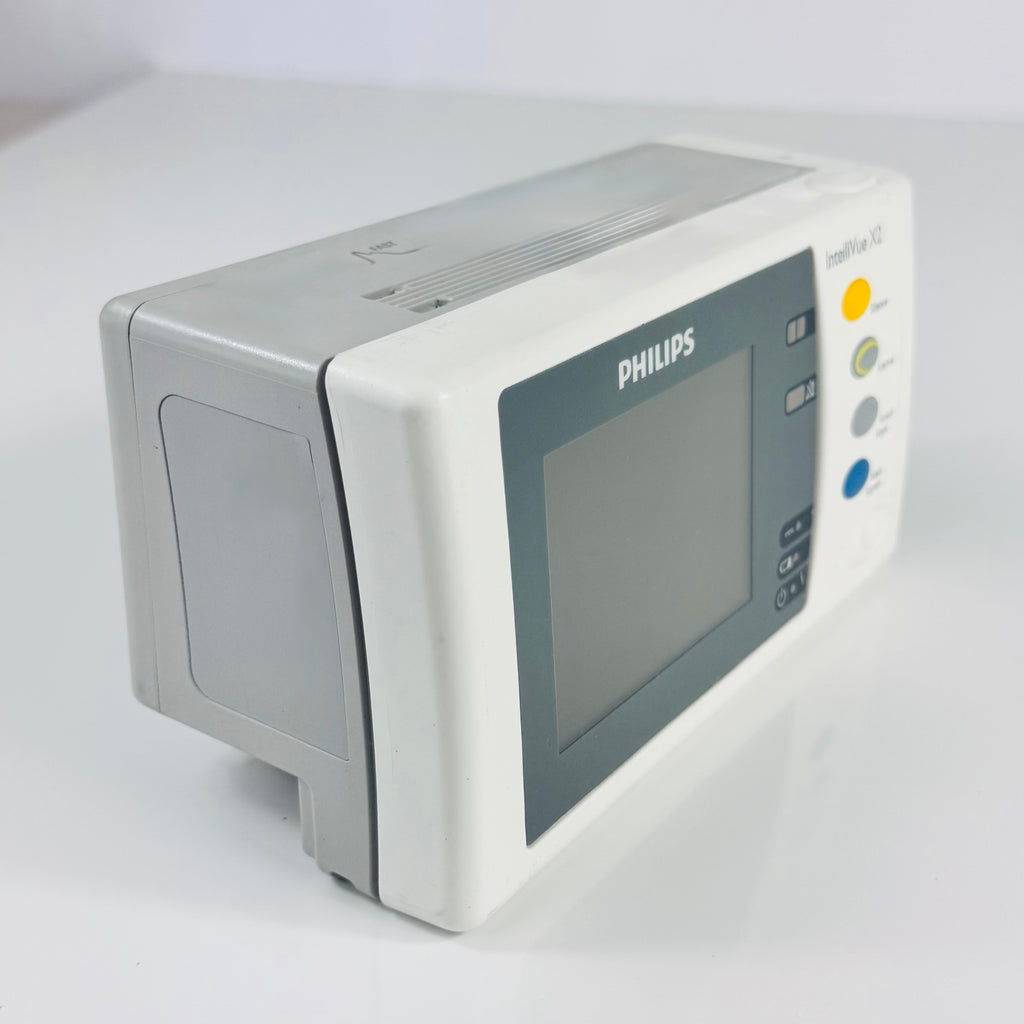

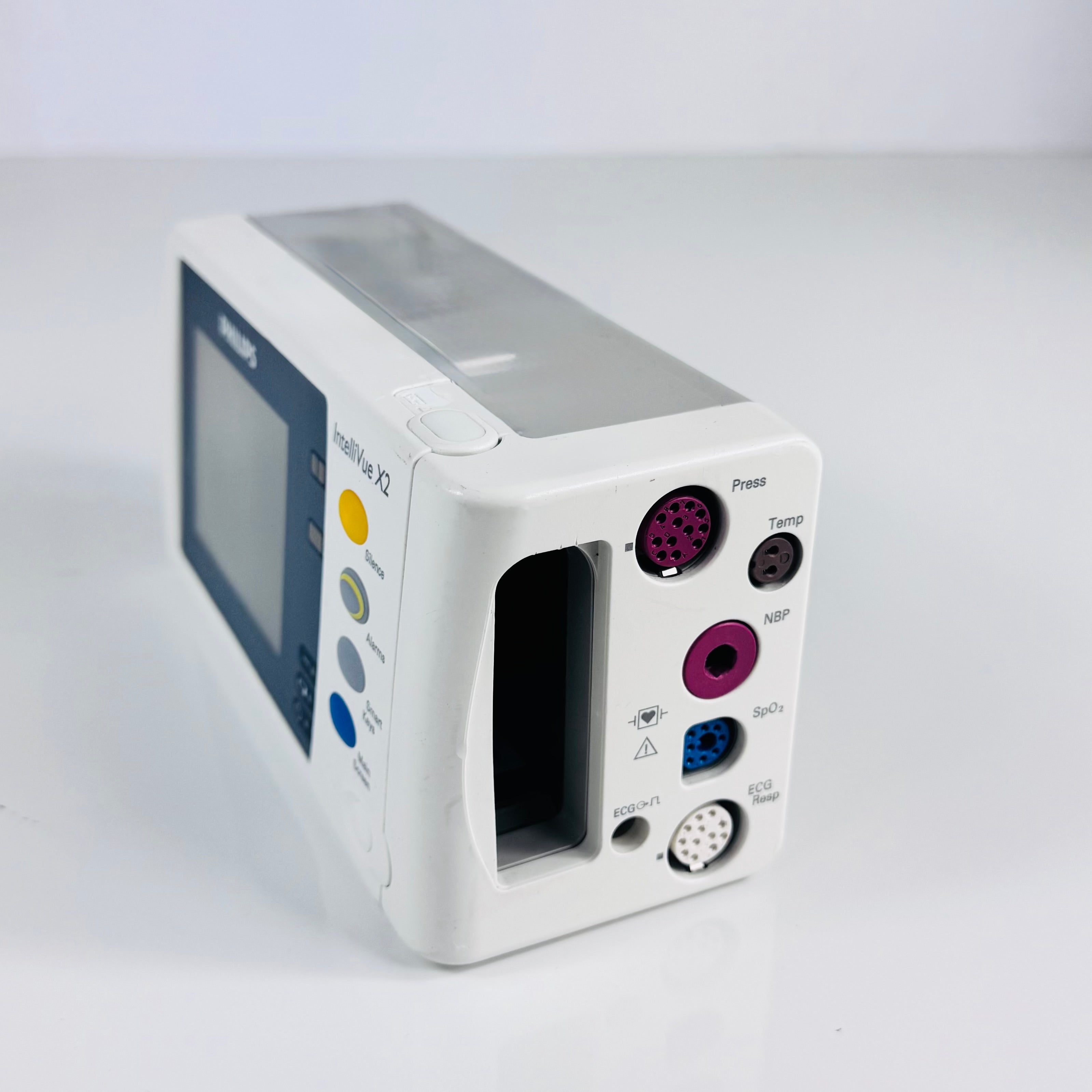

The Philips IntelliVue X2 is a compact, modular, and portable patient monitor and multi-measurement module designed for continuous monitoring across all phases of patient care, including bedside and intra-hospital transport. It combines the flexibility of a multi-parameter module with the independent functionality of a stand-alone monitor.
Key Features:
- Monitors ECG (3-, 5-, 6-, or 10-lead, including arrhythmia analysis and ST/QT monitoring), SpO₂, non-invasive blood pressure (NBP), respiration, temperature, invasive pressures (up to 3 channels), and CO₂ (with optional modules).
- 3.5-inch color touchscreen (QVGA 320×240) with both touch and physical SmartKeys for critical functions.
- Lightweight and portable: 1.2–1.5 kg (2.7–3.3 lbs). Dimensions: approx. 3.9 x 7.4 x 3.4 in (HxWxD).
- Dual functionality: Serves as a plug-in measurement module with other IntelliVue monitors or as a stand-alone device for uninterrupted transport monitoring.
- Battery life: About 3 hours standard, extendable up to 6 hours with optional battery extension.
- Connectivity: Wired LAN, wireless LAN/WLAN, and optional telemetry for integration with hospital information systems and data transfer.
- Visual and audible alarms with configurable priorities and LED indicators.
- Configurable for adult, pediatric, and neonatal patient monitoring profiles.
- Trends and data archiving: Displays trend graphs/tables and allows report printing via PC solutions.
- Compatible with host IntelliVue monitors (MP20–MP90) and modules (M3012A, M3014A, M3015A, M3016A).
