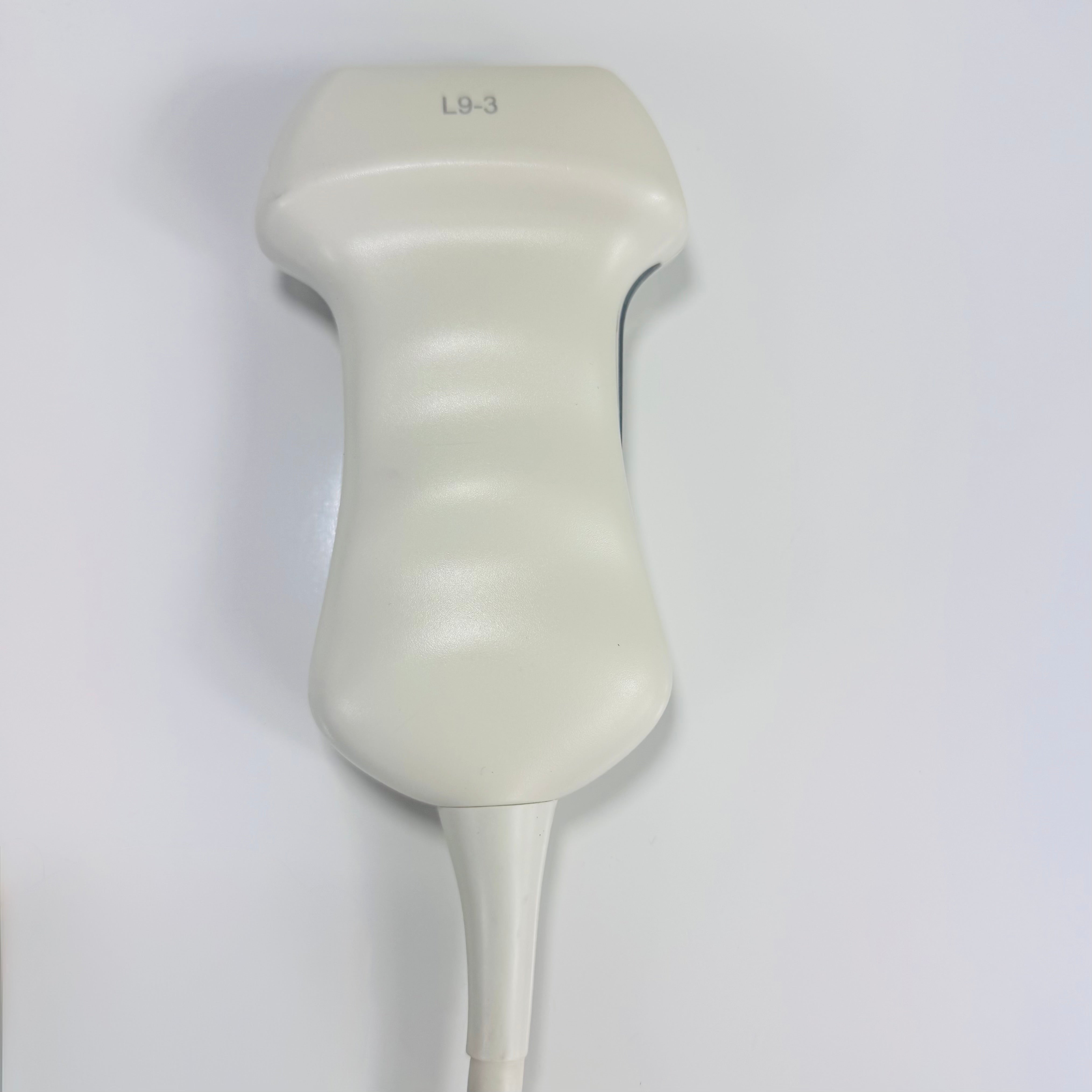

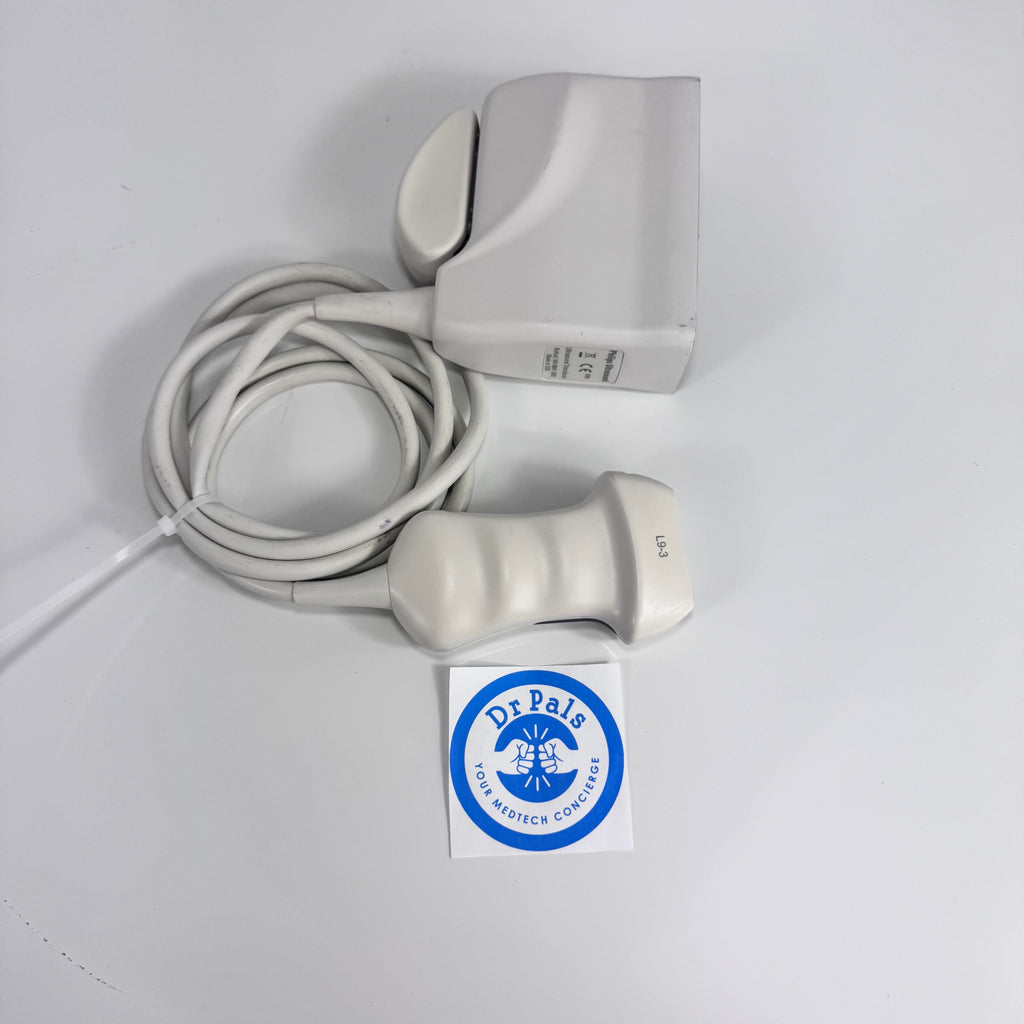

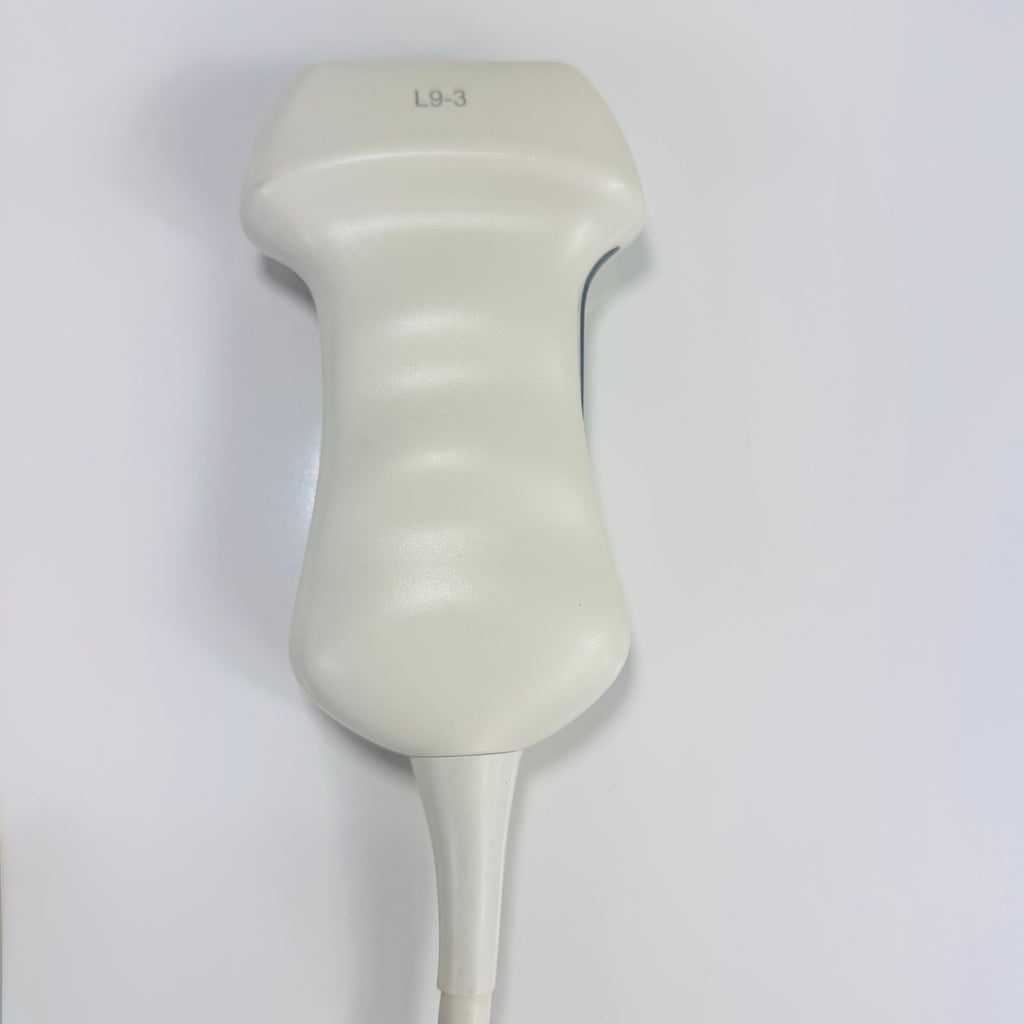

The Philips L9-3 is a broadband linear array ultrasound transducer designed for high-resolution imaging of vascular structures and superficial tissues. With a wide frequency range, it supports detailed imaging for applications including vascular exams (carotid, arterial, venous), cerebrovascular, peripheral vascular, internal mammary vessels, and contrast studies. This transducer is compatible with multiple Philips ultrasound systems and offers advanced imaging capabilities that enhance diagnostic accuracy.
Key Features:
- Frequency range: 3 to 9 MHz for versatile superficial and vascular imaging
- Linear array with 160 elements for sharp image quality
- 38 mm effective aperture length
- 15 degrees of trapezoidal imaging for an extended field of view
- Imaging modes include steerable pulsed Doppler, color Doppler, color power angio (CPA), SonoCT, XRES, panoramic, and harmonic imaging
- Supports biopsy guide (stainless steel reusable biopsy guide, dual angle) compatible with 14-25 gauge needles
- Compatible with Philips iE33, iU22, HD11 XE, HD15, and HD9 systems
- Utilized for vascular, superficial, cerebrovascular, peripheral vascular, and contrast applications
