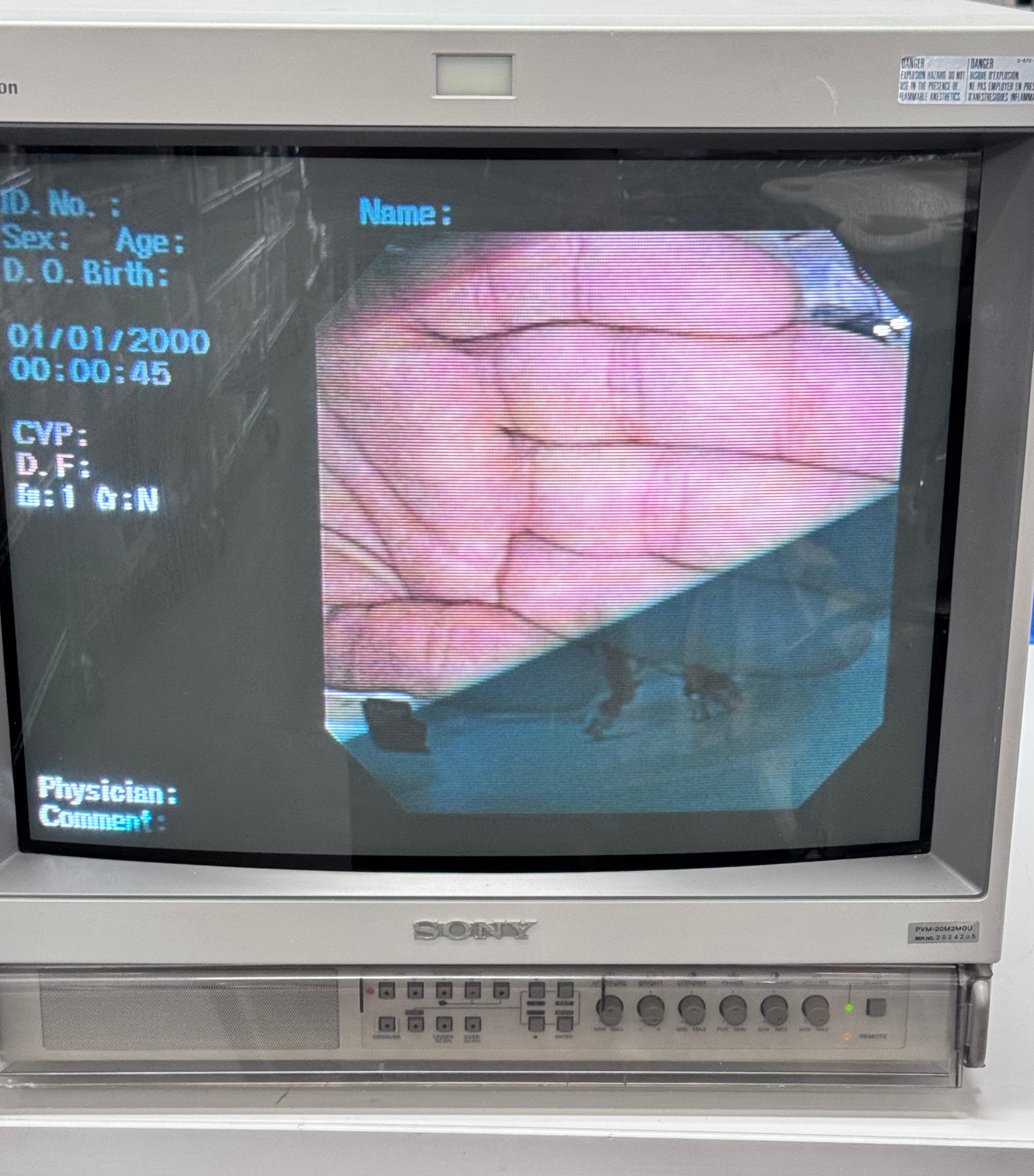

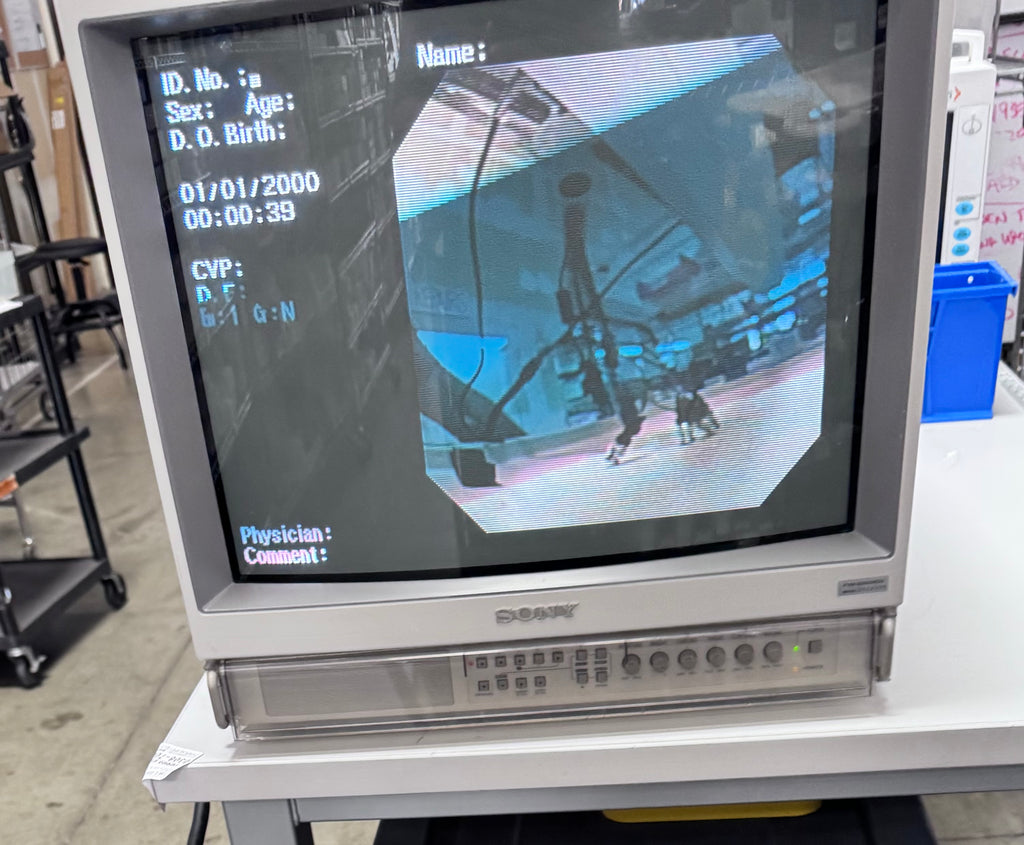

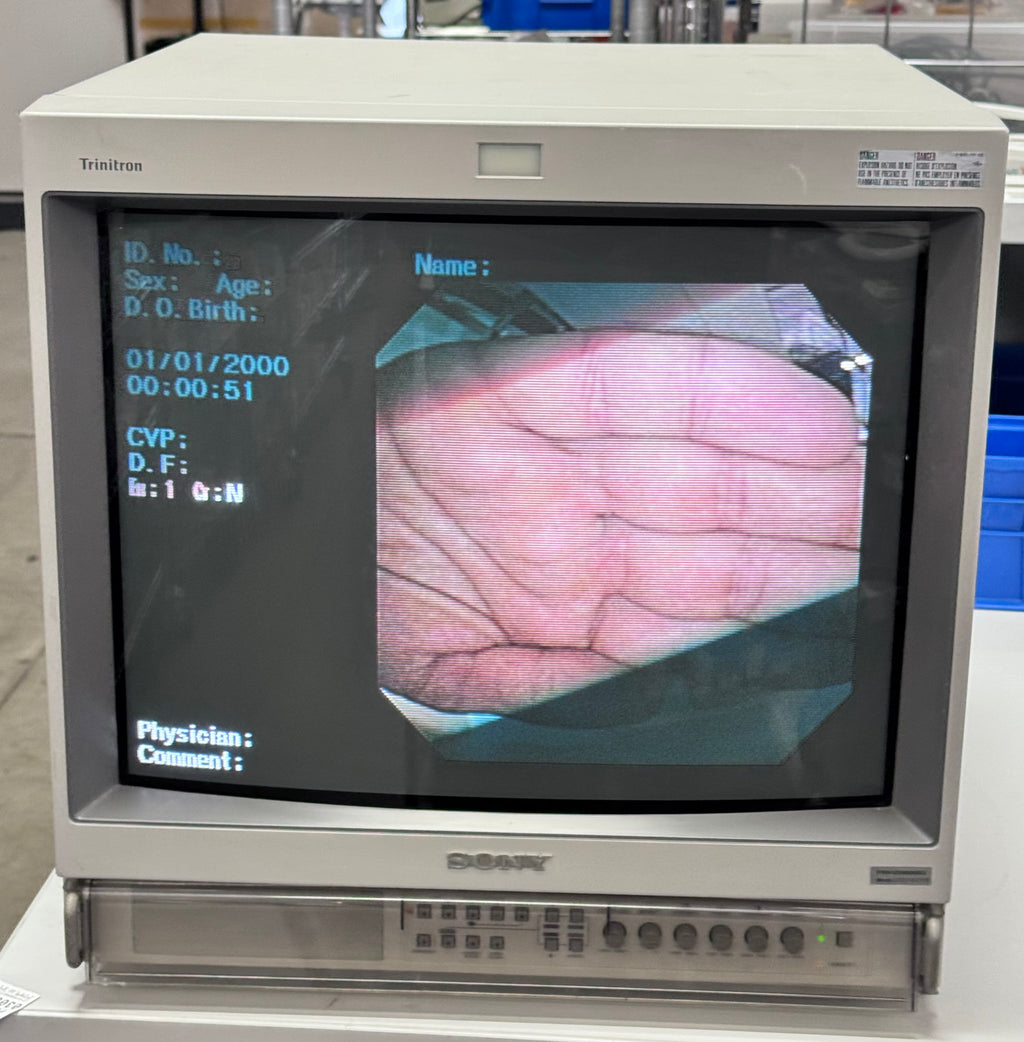

The Sony Trinitron PVM-20M2MDU is a professional-grade CRT color video monitor engineered for medical and broadcast use. Equipped with Sony’s high-resolution Trinitron tube, it delivers crisp images at 600 TV lines of resolution. The 20-inch unit (19-inch viewable area) supports multiple analog inputs—composite, S-Video, component (YPbPr), and RGB—and automatically detects NTSC or PAL color systems. Featuring robust metal construction, underscan/overscan modes, RS-232C remote control capability, and automatic degaussing, the PVM-20M2MDU remains one of the most reliable CRT displays used in surgical visualization and video signal analysis.
Key Features
- Display: 20-inch Trinitron CRT (19-inch viewable), 4:3 aspect ratio
- Resolution: 600 TV lines, high-resolution aperture grille
- Supported Formats: NTSC, PAL, SECAM, and NTSC4.43

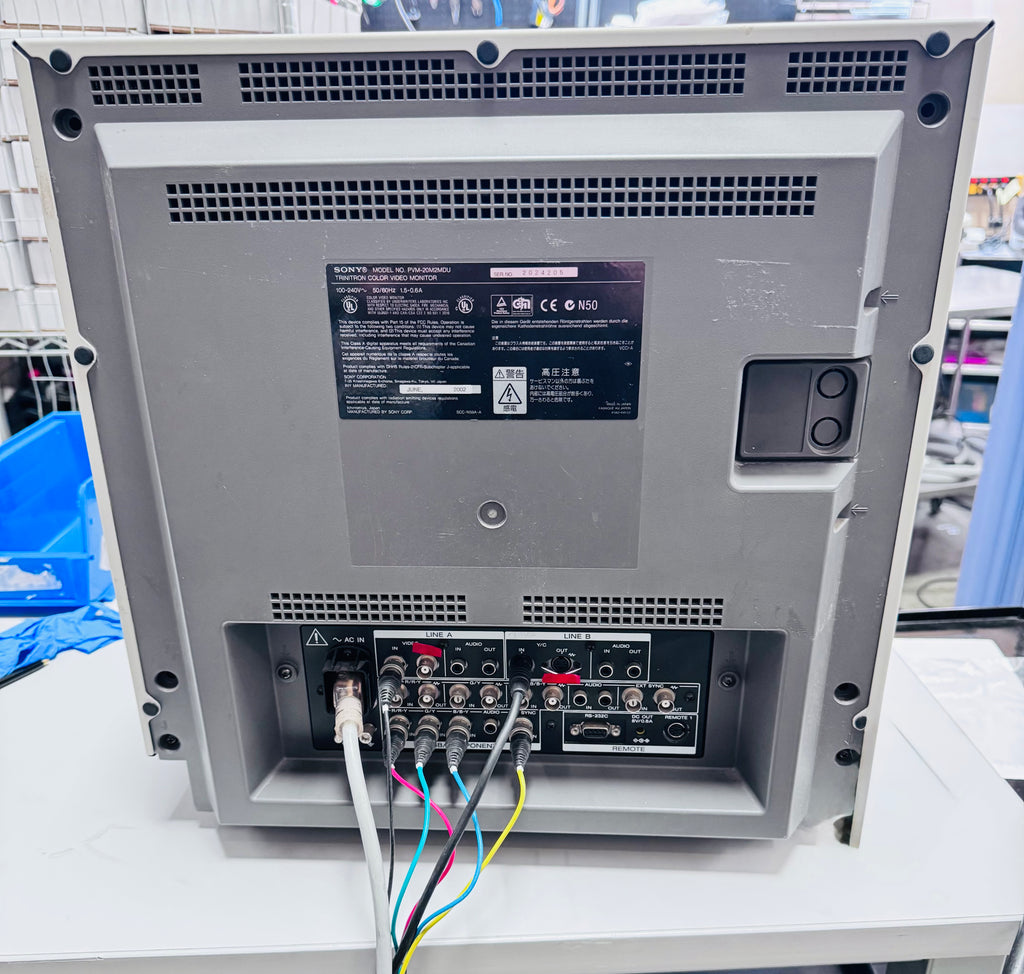

- Inputs/Outputs:
- Composite and S-Video (Y/C)
- Component (Y/R-Y/B-Y) and RGB input with loop-through
- External Sync and RS-232C serial control
- Color Temperature Presets: 5600K, 6500K, 9300K, plus user adjustment from 3200K–10,000K
- Frequency Range: 15 kHz horizontal, 60 Hz vertical
- Audio: Built-in mono speaker with 0.8 W output power
- Build & Design: Metal chassis, rack-mountable, handles for portability, auto/manual degauss
- Power Input: AC 100–240V, 50/60Hz, 1.5A–0.6A consumption
- Dimensions/Weight: 18x18x20 inches; approx. 30 kg (66 lbs)
- Compliance: UL 2601-1, CSA 601.1, EN 601-1 (medical safety standards)
- Ideal for operating room displays, broadcast monitoring, and retro gaming enthusiasts, the Sony PVM-20M2MDU is renowned for its color accuracy, sharpness, and professional-grade reliability
